10G SFP+ Series
10G SFP+ optical transceiver series covering SR, LR, ER, ZR, BIDI, CWDM and DWDM options. Select the part number by wavelength and transmission distance.
Category: Optical Transceiver
Key Features
- 10G SFP+ form factor for short-reach to long-reach optical links.
- SR, LR, ER and ZR options from 300 m to 80 km.
- BIDI pairs for single-fiber links at 80 km.
- CWDM (1470–1610 nm) and DWDM options at 80 km.
Technical Specifications
| Parameter | Specification |
|---|---|
| Form Factor | SFP+ |
| Data Rate | 10G |
| Series | SP96 |
Listed Model Variants
| Part No. | Description | Wavelength | Distance |
|---|---|---|---|
| SP96-8503M | SFP+ SR | 850nm | 300m |

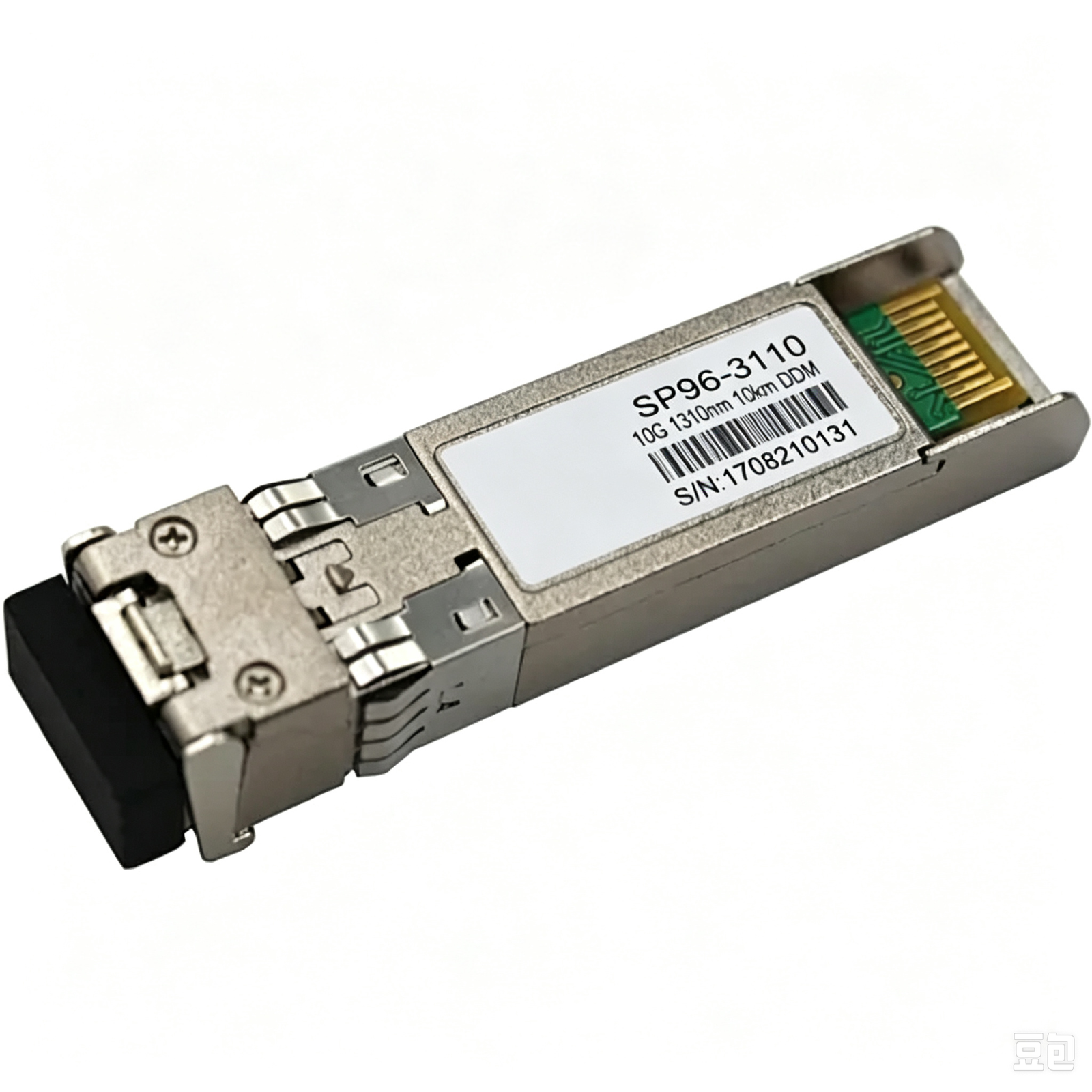

| SP96-3110 | SFP+ LR | 1310nm | 10km |
| SP96-5540 | SFP+ ER | 1550nm | 40km |
| SP96-5580 | SFP+ ZR | 1550nm | 80km |
| SP96-B4580 | SFP+ BIDI | Tx1490/Rx1550nm | 80km |
| SP96-B5480 | SFP+ BIDI | Tx1550/Rx1490nm | 80km |
| SP96-CXX80 | SFP+ CWDM | 1470-1610nm | 80km |
| SP96-DXX80 | SFP+ DWDM | DWDM | 80km |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
10G Ethernet and fiber uplink links where the required wavelength and distance match a listed SFP+ part number.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is 10G SFP+ Series used for?
10G Ethernet and fiber uplink links where the required wavelength and distance match a listed SFP+ part number.
Which specifications should I check for 10G SFP+ Series?
The listed specifications include Form Factor: SFP+; Data Rate: 10G; Series: SP96. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 10G SFP+ Series?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
