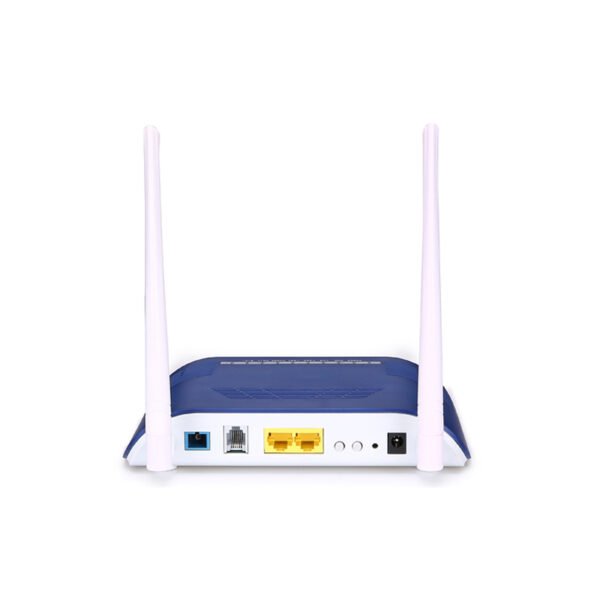

Model: 323RW

Item Parameters
Model 323RW
Standard ITU-T G.984.x, IEEE802.3ah
Wavelength Tx 1310nm, Rx 1490nm
Port 1 xPON ports, SC/PC connector

1 10/100/1000Mbps + 1 10/100Mbps, Auto adaptive Ethernet port, Full/Half duplex, RJ45 connector

1 FXS, RJ11 connector

Ethernet LAN: Support Port rate limiting, Loop detection, Flow control, Storm control

VLAN: Support VLAN QinQ, transparent, tag, translation, trunk, etc

Multicast: Support IGMPv1/v2/v3, IGMP Proxy and MLD Proxy IGMP Snooping and MLD Snooping

QoS: Support 4 queues, SP and WRR, 802.1P, DSCP

L3: Support IPv4/IPv6 and IPv4/IPv6 dual stack, WAN DHCP/PPPOE/Statics IP, Static route, NAT, Port forwarding, DHCP Server



l  Call protocol: SIP

l  GR-909 line testing

l  Voice coding: ITU-T G.711/G.723/G.726/G.729

l  Echo cancellation

l  Support high/low speed fax/Modem, bypass fax, and T38 fax.

l  Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing

Management ITUT984.x OMCI(GPON), CTC OAM(EPON)


Security Support Firewall, Mac filter, ACL, URL filter
Rx sensitivity < -27dBm (CLASS B+)
Overload >-8dBm (CLASS B+)
Wireless 300Mbps, 2T2R 2 external antennas

Support 802.11b/g/n and Mixed mode, No-auth, WEP, WPA-PSK and WPA2-PSK function with AES, TKIP encryption

Indicators 8 indicators for power, PON port and etc.
Power supply +12V, AC-DC power adapter
Power consumption <9W
Dimension (L*W*H) 185*122*33mm
Net Weight 0.28KG
