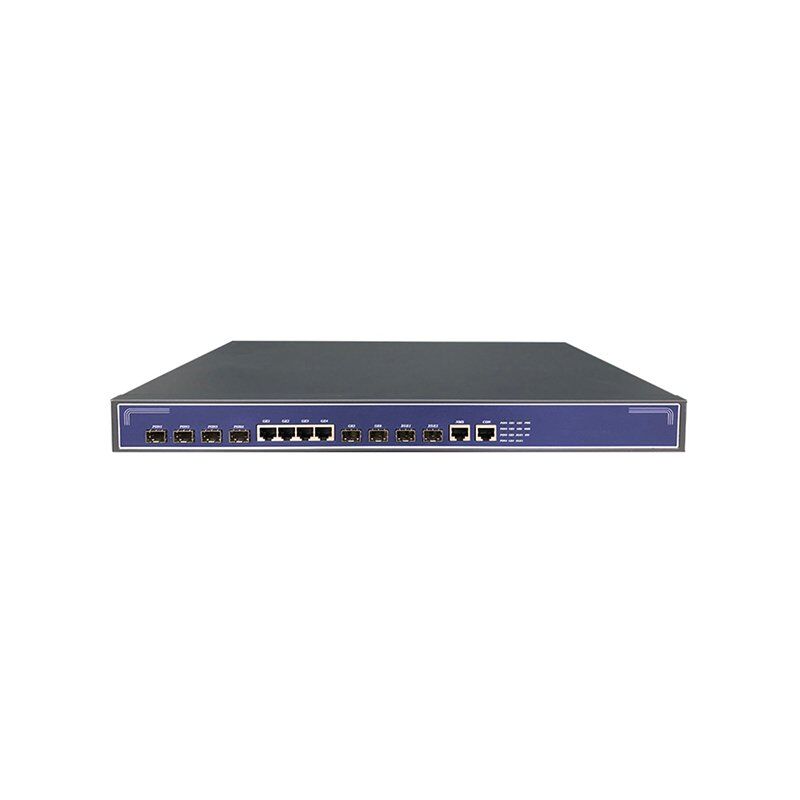

4ports EPON OLT

4*GE RJ45 ports+4*GE SFP slot
4*GE EPON ports
Tx power: +2~+7dBm
Rx Sensitivity: -30dBm
Max split ratio: 1:64

Features

  • 19inch, 1U rack, 4 EPON ports
  • Support Layer 3 Route/Switch
  • Max split ratio 1:64
  • ONU auto-detection and registration
  • Support LGMP and Snooping function
  • Support data encryption, multi-cast, port VLAN, separation, RSTP, etc



Specifications

Item Parameters
Model 1600D4N
Uplink ports 4*GE RJ45 ports+4*GE SFP slot
EPON ports 4*GE EPON ports

Up/down stream: 1.25/1.25Gbps

Wavelength: TX 1490nm, RX 1310nm

Tx power: +2~+7dBm

Rx Sensitivity: -30dBm

Saturation Optical Power: -6dBm

Management ports 1 10/100BASE-T out-band port, 1 CONSOLE port
Management mode SNMP, Telnet, CLI, OAM, and web management
Power Supply AC 90-264V, 47/63Hz. Dual power supply optional.
Dimension (L*W*H) 44*30*4.4 (cm)
Power Consumption 30W
Weight 4.5kg
Layer 2 aggregation switching 32K Mac address;

Port VLAN and protocol VLAN;

VLAN tag/Un-tag, VLAN transparent transmission;

4096 VLANs;

Vlan translation and QinQ;

Storm control based on port

Port isolation;

Port rate limitation;

802.1D and 802.1W;

Static LACP;

QOS based on port, VID, TOS and MAC address;

Access control list;

IEEE802.x flow control;

Port stability statistic and monitoring;

ONU switch in the same PON interface.

Layer 3 Route 1024 Host Routes;

512 Subnet Routes;

Arp proxy;

Static route.

Multicast IGMP snooping

256 IP Multicast Groups;

DHCP DHCP server

DHCP relay

DHCP snooping

Management Online upgrade of device software

Port Status monitoring and configuration management;

Layer-2 switch configuration such as VLAN, Trunk, RSTP, IGMP, QOS, etc;

EPON management function: DBA, ONU authorization, ACL, QOS, etc;

Online ONU configuration and management;

User management;

Alarm management.

EPON function ONU automatic identification, automatic finding, and automatic registration

Data encryption, multi-cast, port VLAN, separation, RSTP, etc;

Power-off alarm function, easy for link problem detection;

Broadcasting storm resistance function;

Port isolation between different ports;

ACL and SNMP to configure data packet filter flexibly;

Specialized design for system breakdown prevention to maintain stable system.

Flexible DBA, uplink and downlink traffic rate-limited

Various LLID configuration and single LLID configuration; Different user and different service could provide different QoS by means of different LLID channels.

Operation Temp. -10~ +55℃
Storage Temp. -40 ~ +85℃
Humidity 5~90% (non-condensing)
