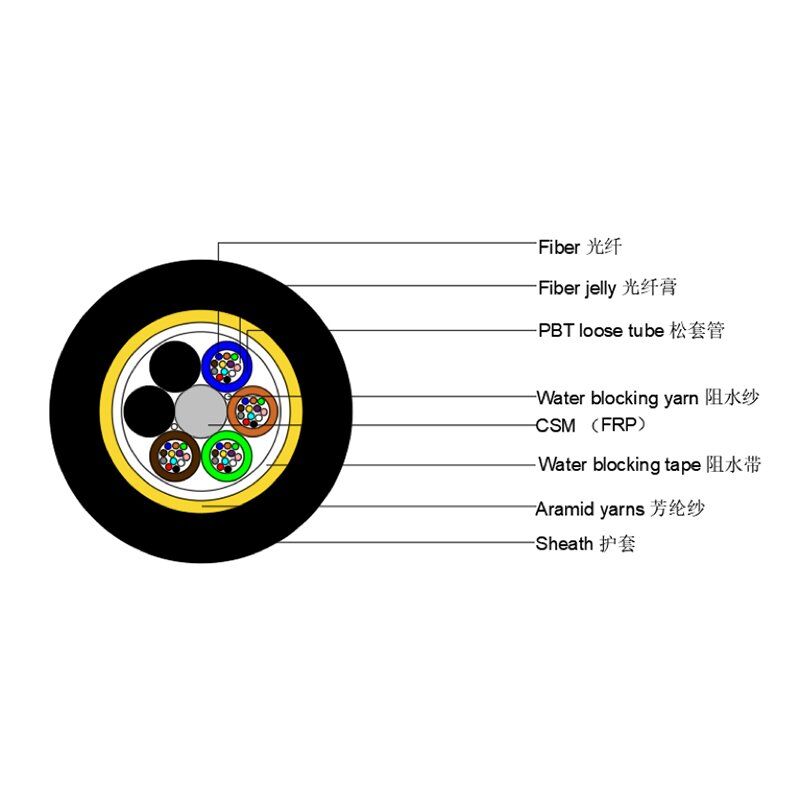

ADSS aerial fiber cable

Item

Specification

Fiber type

Single mode

Fiber material

Doped silica

Attenuation coefficient

@ 1310 nm

 0.36 dB/km

@ 1383 nm

 0.32 dB/km

@ 1550 nm

 0.22 dB/km

Point discontinuity

 0.05 dB

Cable cut-off wavelength

 1260 nm

Zero-dispersion wavelength

1300 ~ 1324 nm

Zero-dispersion slope

 0.092 ps/(nm2.km)

Chromatic dispersion

@ 1288 ~ 1339 nm

@ 1271 ~ 1360 nm

@ 1550 nm

@ 1625 nm

3.5 ps/(nm. km)

5.3 ps/(nm. km)

18 ps/(nm. km)

22 ps/(nm. km)

PMDQ (Quadrature average*)

0.2 ps/km1/2

Mode field diameter @ 1310 nm

9.2±0.4 um

Core / Clad concentricity error

 0.5 um

Cladding diameter

125.0  0.7 um

Cladding non-circularity

1.0%

Primary coating diameter

245  10 um

Proof test level

100 kpsi (=0.69 Gpa), 1
