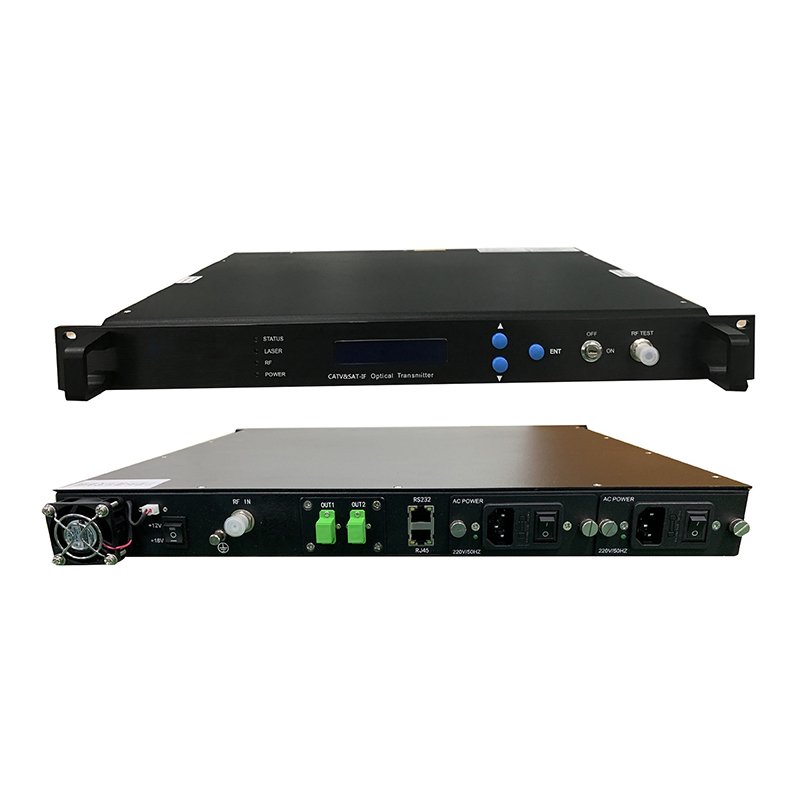

FCOT-2600DB 47–2600MHz Broadband CATV & SAT-IF FTTH Optical Transmitter
1U rack-mountable 47–2600MHz broadband optical transmitter supporting both CATV and satellite IF signals over a single fiber. Features high linearity DFB laser with APC, AGC, and ATC control. Ideal for FTTH networks integrating CATV, DVB-S, and internet services.
Category: CATV Optical Equipment
Key Features
- Ultra-wide bandwidth (47–2600MHz) supporting simultaneous transmission of CATV and SAT-IF signals.
- High-linearity DFB laser (1310nm or 1550nm options) ensures superior signal quality and transmission distance.
- Advanced microprocessor control with automatic power (APC), gain (AGC), and temperature (ATC) regulation.
- Front-panel LCD display for real-time monitoring of all operational parameters and alarms.
- Standard 1U 19-inch rack-mountable design with high-efficiency switching power supply.
- Ideal solution for FTTH and triple-play networks requiring robust CATV and satellite television integration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Optical Wavelength | 1310nm ± 20nm or 1550nm ± 10nm |
| Optical Output Power | 4mW to 30mW (depending on variant) |
| Optical Connector | SC/APC (FC/APC optional) |
| Working Bandwidth | 47–2600 MHz |
| CATV Frequency Range | 47–862 MHz |
| SAT-IF Frequency Range | 950–2600 MHz |
| CATV Flatness | ≤±0.75 dB |
| SAT-IF Flatness | ≤±1.5 dB |
| RF Input Level (CATV) | 75–85 dBμV |
| RF Input Level (SAT-IF) | 70–85 dBμV |
| RF Input Impedance | 75 Ω |
| RF Input Return Loss (CATV) | ≥16 dB |
| RF Input Return Loss (SAT-IF) | ≥12 dB |
| CNR (CATV) | ≥51 dB |
| CTB (CATV) | ≤-65 dBc |
| CSO (CATV) | ≤-60 dBc |
| IMD3 (SAT-IF) | ≤-40 dBc |
| AGC Range | ±5 dB |
| Laser Type | High Linearity DFB Laser |
| Control Systems | APC, AGC, ATC |
| Management Interface | RS232, RJ45 (SNMP optional) |
| Display Interface | Front Panel LCD |
| Power Supply | AC 90~265V, 50/60Hz or DC -48V |
| Power Consumption | ≤30 W |
| Operating Temperature | -5°C to +50°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | 5% to 95% (non-condensing) |
| Net Weight | 3.5 kg |
Listed Model Variants
| Model | Listed Optical Output |
|---|---|
| FCOT-2600DB-13-8 | 1310nm, 8mW |
| FCOT-2600DB-13-10 | 1310nm, 10mW |
| FCOT-2600DB-13-12 | 1310nm, 12mW |
| FCOT-2600DB-13-14 | 1310nm, 14mW |
| FCOT-2600DB-13-16 | 1310nm, 16mW |
| FCOT-2600DB-13-18 | 1310nm, 18mW |
| FCOT-2600DB-13-20 | 1310nm, 20mW |
| FCOT-2600DB-13-22 | 1310nm, 22mW |
| FCOT-2600DB-13-24 | 1310nm, 24mW |
| FCOT-2600DB-13-26 | 1310nm, 26mW |
| FCOT-2600DB-13-28 | 1310nm, 28mW |
| FCOT-2600DB-13-30 | 1310nm, 30mW |
| FCOT-2600DB-15-4 | 1550nm, 4mW |
| FCOT-2600DB-15-6 | 1550nm, 6mW |
| FCOT-2600DB-15-8 | 1550nm, 8mW |
| FCOT-2600DB-15-10 | 1550nm, 10mW |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH networks integrating CATV, DVB-S, and internet services over a single fiber.
