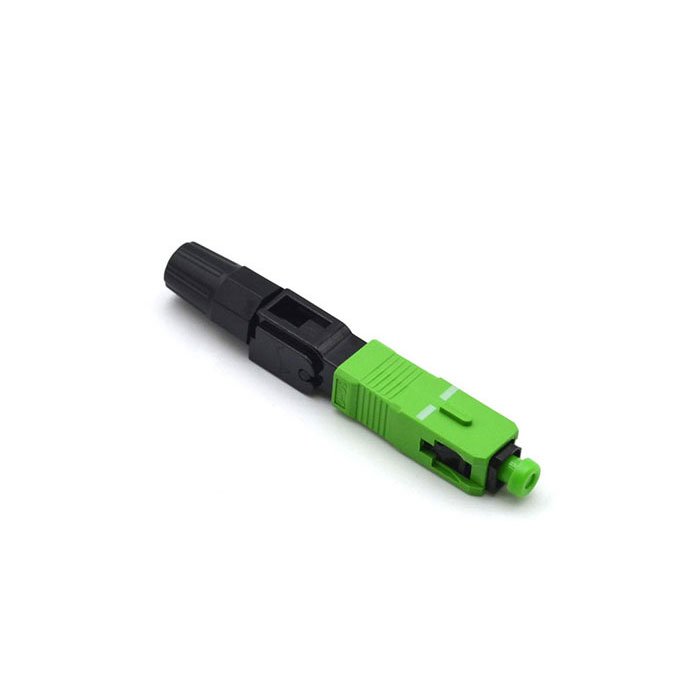

Fiber Fast Connectors
Fiber fast connectors available in single-mode or multi-mode, with SC/LC, APC/UPC connector types. Designed for outdoor waterproof installation and FTTH/FTTR access networks. On-site operation is simple with no special tools required.
Category: Passive Optical Components
Key Features
- Easy installation – simple on-site assembly with no special tools required.
- Low insertion loss – ensures high-quality signal transmission.
- High return loss – minimizes signal reflection for better network performance.
- Wide operating temperature – suitable for various environmental conditions.
- Good durability – robust construction for long-term reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable For | Drop cable / Indoor cable (2.0mm, 3.0mm, 2.0x3.0mm) |
| Cable Diameter | 0.25mm, 0.9mm, 2.0mm, 3.0mm |
| Operating Wavelength | 1310nm / 1550nm |
| Insertion Loss | ≤ 0.3 dB (Max ≤ 0.5 dB) |
| Return Loss | UPC ≥ 50 dB, APC ≥ 60 dB |
| Repeatability | ≤ 0.2 dB |
| Interchangeability | ≤ 0.2 dB |
| Tensile Strength | > 50 N |
| Operation Time | About 2 minutes (exclude fiber presetting) |
| Reusable | Up to 5 times |
| Operating Temperature | -40°C to +85°C |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
FTTH/FTTR access networks, outdoor waterproof installations, local area networks, data processing networks.
Related Products
- Fiber Optical Distribution Box
- Fiber Optic PLC Splitter
- Fiber Optic Patch Cords (Jumpers)
- Fiber Optic Adapters
Related Solutions & Guides
Equipment Buyer Questions
What is Fiber Fast Connectors used for?
FTTH/FTTR access networks, outdoor waterproof installations, local area networks, data processing networks.
Which specifications should I check for Fiber Fast Connectors?
The listed specifications include Applicable For: Drop cable / Indoor cable (2.0mm, 3.0mm, 2.0x3.0mm); Cable Diameter: 0.25mm, 0.9mm, 2.0mm, 3.0mm; Operating Wavelength: 1310nm / 1550nm; Insertion Loss: ≤ 0.3 dB (Max ≤ 0.5 dB). Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for Fiber Fast Connectors?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
