FTTH WDM CATV Optical Receiver

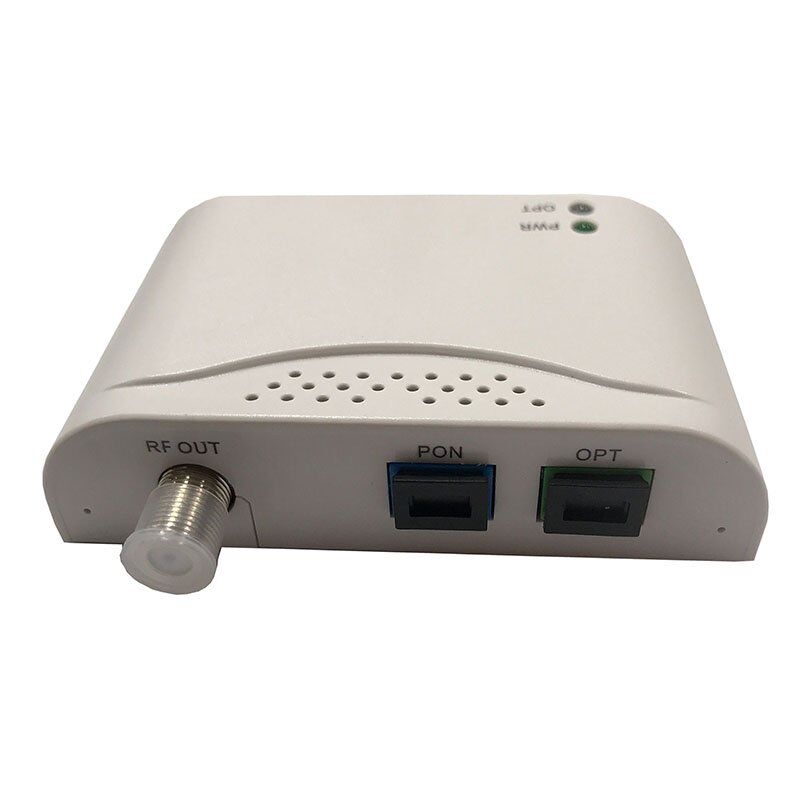

FCOR-2080WD FTTH WDM optical receiver

Category CATV optic Tx/Rx/EDFA Tags optical receiver, WDM optical receiver

Model:FCOR-2080WD
Operation Bandwidth:47MHz ~ 1000MHz
Output Level:80dBuV @AGC:-10~0dBm

Features

Automatic Gain Control (AGC) circuit
RF output level: ≥80dBuV @-10dBm Optical input power
Wide optical input range: -18dBm~0dBm

Specifications

Item	Parameters
Model	FCOR-2080WD
CATV wavelength	1550 nm
PON wavelength	1310/1490nm
Input Optical Power	-18~ +0dBm (AGC:-10~0dBm)
Optical Return Loss	≥40dB
Optical Connector	SC/APC
Operation Bandwidth	47 ~ 1000MHz
RF Output Level	≥80dBuV
RF Connector	F Female
RF Return Loss	>12 dB
CNR	>43dB
CSO	≥55dB
CTB	≥55dB
Power Supply	12 VDC
Power Consumption	2.0W
Dimension (LWH)	736023mm
Weight	0.1KG
Operation Temp.	-20 ~ +50°C
Storage Temp.	-40 ~ +85°C
