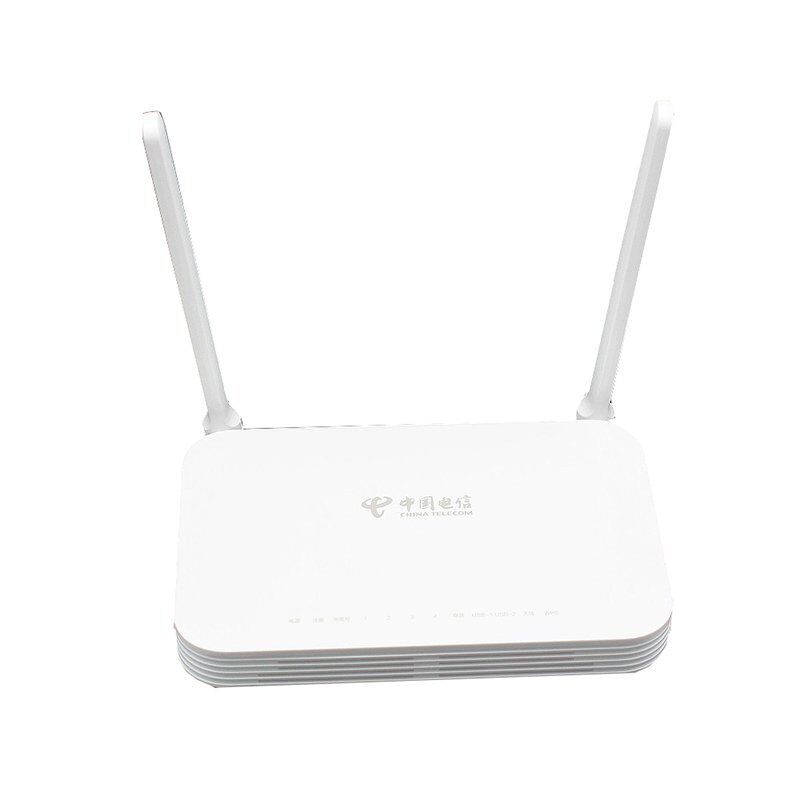

HS8145X6 WiFi 6 GPON ONT

Huawei HS8145X6 WiFi 6 GPON ONT

Huawei HS8145X6 4*GE+1*POTS+2*USB+2.4G 5G 11ax WiFi (WiFi 6) GPON ONT

Category PON OLT/ONT Tags GPON ONT, HS8145X6, Wi-Fi 6 GPON ONT

Model: HS8145X6
4*GE+1*POTS+2*USB+2.4G/5G 11ax WiFi (Wi-Fi 6)

The Huawei HS8145X6 is a routing-type GPON/EPON ONT with 4*GE+1*POTS+2*USB+2.4G/5G 11ax WiFi (Wi-Fi 6).

Item	HS8145X6
Network-side Port	GPON/EPON
User-side Ports	4GE+1POTS+2*USB+2.4G/5G 11ax WiFi (Wi-Fi 6)
Static power consumption	5.3 W
Max. power consumption	18 W
WLAN	2.4GHZ: 802.11n 5GHZ: 802.11ax
Power specifications	Power adapter input: 100 to 240 V AC, 50–60 Hz
Power specifications	System power supply: 11–14 V DC, 1.5 A
Indicators	POWER/PON/LOS/TEL/LAN/WLAN/WPS/USB
Working environment	Operating temperature: 0ºC to 40ºC
Working environment	Environment humidity: 5% to 95% (noncondensing)
Dimensions (length x width x height)	195 mm x 125 mm x 35 mm
Weight	About 370 g
