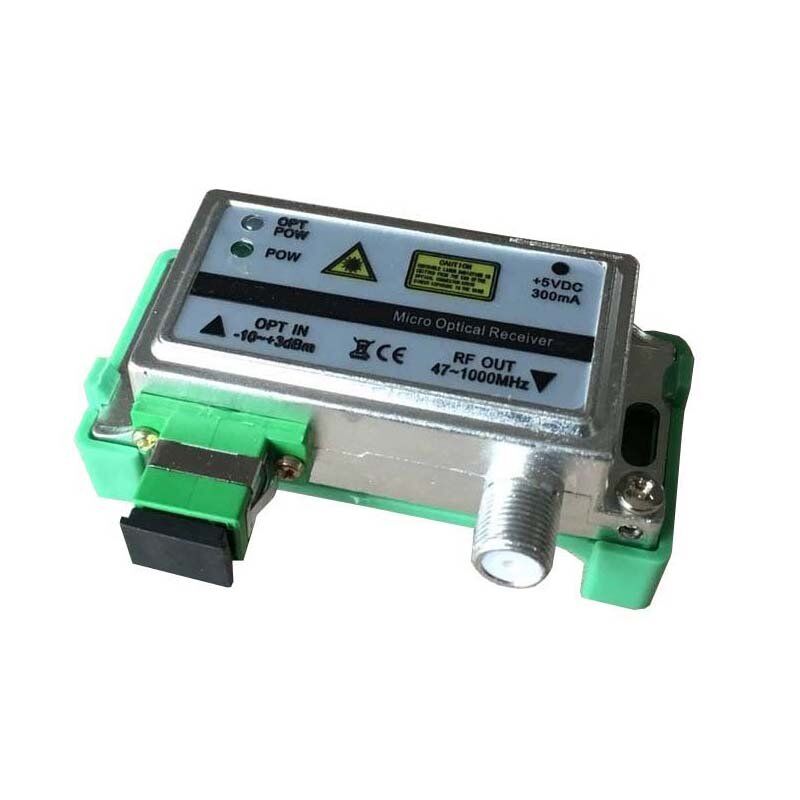

Micro AGC FTTH CATV Optical Receiver

FCOR-2080MS CATV optical receiver

Category CATV optic Tx/Rx/EDFA Tag optical receiver

Model:FCOR-2080MS
Operation Bandwidth:45MHz ~ 1000MHz
Output Level:76dBuV

Features

Automatic Gain Control(AGC) circuit
2-stage LED optical input power indicator
Low consumption
Compact Housing

Specifications

Item	Parameters
Model	FCOR-2080MS
Input Optical Wavelength	1100-1650 nm
Input Optical Power	-10~ +3dBm AGC
Optical Return Loss	≥40dB
Optical Connector	SC/APC
Operation Bandwidth	45MHz ~ 862MHz
Output Level	76dBuV
Slope	0dB
Flatness	±1dB
RF Connector	F Female
Output power indicator	Diode LED indicator: Red: PIN>-3 Green:-10<PIN<-3< FONT> OFF:PIN<-10
RF Return Loss	>14 dB
CNR	>46dB @ -1dBm receiving
CSO	≥60dB
CTB	≥60dB
RF Output Stability in AGC range	±1.0
Power Supply	12 VDC
Power Consumption	2.0W
Dimension (LWH)	746428mm
Weight	0.1KG
Operation Temp.	-20 ~ +50°C
Storage Temp.	-40 ~ +85°C
