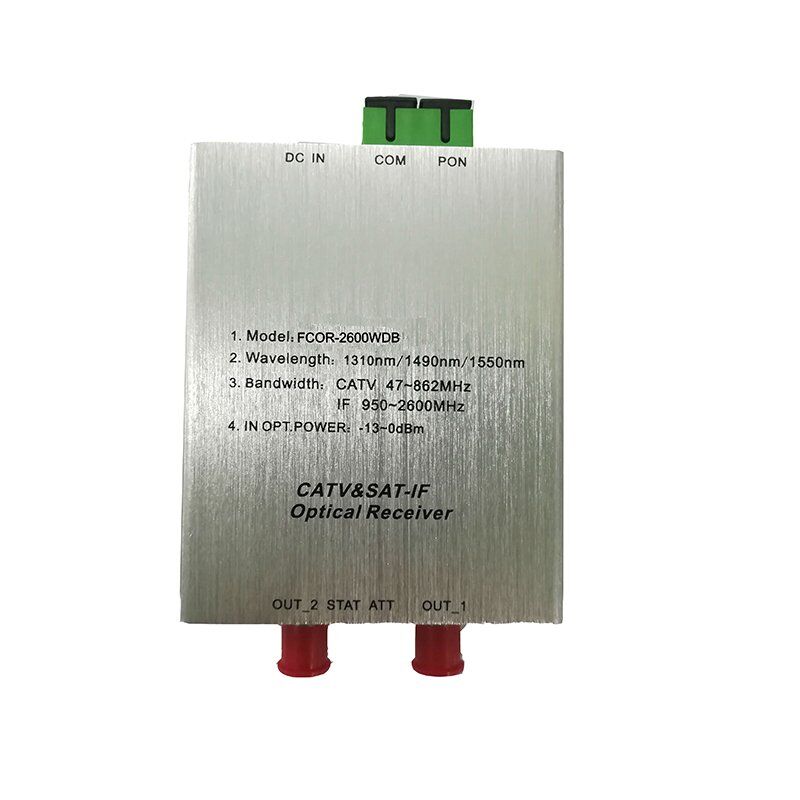

PON, CATV & SAT-IF FTTH WDM Optical Receiver

Model:FCOR-2600WDB
Frequency: CATV: 47~862MHz, SAT-IF: 950~2600MHz
Output Level: CATV: 66~86 dBuV, SAT-IF: 59~79 dBuV

Features

  • Built-in WDM
  • Good linearity index
  • With high sensitivity optical detector
  • Compact design.
  • Good heat dissipation.
  • Low power consumption

Specifications

Optical parameter
Working wavelength 1290~1600nm
Optical power input -13~0dBm
Optic return loss ≥45dB
Optical connector type SC/APC
RF parameter
Frequency 47~862MHz
Flatness ±1.5dB
Output impedance 75Ω
Output Return Loss >16db
Output level 66~86 dBuV @0dBm
CNR ≥50@0dBm
CTB ≥62@0dBm
CSO ≥63@0dBm
SAT-IF parameter
Frequency 950~2600MHz
Output level 59~79 dBuV
Flatness ±1.5dB
IMD -40dBc
Output impedance 75Ω
General
Power supply 12VDC
Power consumption ≤4W
Operating temperature -0~50 °C
Storage temperature -20~85°C
Relative humidity 20%~85%
Weight 0.3KG
Size 13.5*10*2.6cm
