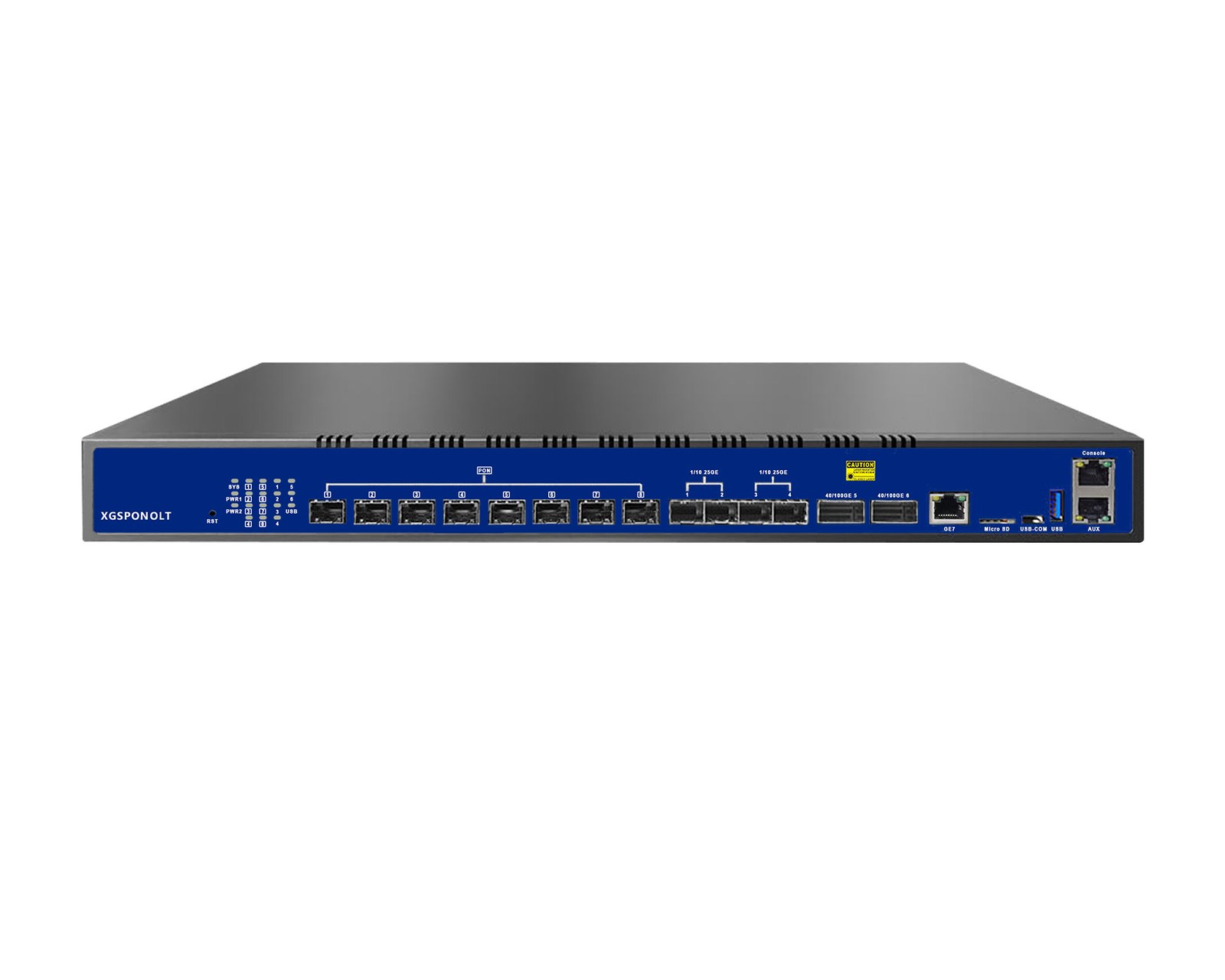

8PON Ports XG/XGS-PON OLT
8PON Ports XG/XGS-PON OLT is with high-performance Broadcom + NXP chipset, delivering up to 10Gbps per PON port. Provides 1*GE (RJ45) + 4*25GE (SFP28) + 2*100GE (QSFP28) uplink ports to achieve full-speed data forwarding; provides 8*XG(S)-PON downlink interfaces, the maximum splitting ratio is 1:256.
Category: xPON OLT
Key Features
- 1U 8-port 10G PON OLT – compact design with high-density 10G PON access.
- High-performance chipset – Broadcom + NXP architecture for stable processing.
- XG/XGS-PON optional – flexible PON mode selection per port.
- Ultra-high-speed uplink – 100GE and 25GE uplinks for non-blocking data forwarding.
- IPv4/IPv6 dual stack – supports robust L3 routing capabilities.
- Redundant power supply – dual power design for enhanced reliability.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | ITU-T G.9807 (XGS-PON), ITU-T G.987 (XG-PON) |
| PON Interface | 8 * SFP+ slots (XG-PON or XGS-PON) |
| PON Speed | XG-PON: Downstream 9.953 Gbps / Upstream 2.488 Gbps | XGS-PON: Downstream 9.953 Gbps / Upstream 9.953 Gbps |
| Transmission Distance | Up to 20 km |
| Split Ratio | 1:256 (max), 1:128 (recommended) |
| Wavelength | TX 1577 nm / RX 1270 nm |
| Uplink Ports | 1 * GE (RJ45) + 4 * 25GE (SFP28) + 2 * 100GE (QSFP28) |
| Management | WEB, Telnet, CLI, out-band LAN port, Console |
| USB Port | 1 * USB 2.0 |
| MAC Address Table | 128K |
| VLAN Support | 4096 VLANs, port VLAN, VLAN tag/untag, VLAN translation, QinQ |
| Layer 3 Features | Static routing, OSPF, BGP, VRRP, ARP proxy |
| IPv6 Features | NDP, IPv6 Ping/Telnet/routing, ACL based on IPv6, MLD v1/v2 snooping |
| Multicast | IGMP snooping v1/v2/v3, L2/L3 multicast |
| DHCP | DHCP server, DHCP relay, DHCP snooping, Option 82 |
| QoS | Based on port, VID, TOS, MAC address |
| Link Aggregation | Static LACP, Dynamic LACP |
| Backplane Bandwidth | 600 Gbps |
| Forwarding Rate | 357.12 Mpps |
| Power Consumption | ≤60 W |
| Power Supply | AC 100–240V, 50/60Hz or DC -48V (dual redundancy) |
| Surge Protection | 4KV |
| Dimension | 442 mm * 320 mm * 44 mm |
| Weight | 4.5 kg |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 5% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Suitable for medium to large enterprises, FTTH deployments, high-density residential areas, and campus networks requiring ultra-fast data transmission.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is 8PON Ports XG/XGS-PON OLT used for?
Suitable for medium to large enterprises, FTTH deployments, high-density residential areas, and campus networks requiring ultra-fast data transmission.
Which specifications should I check for 8PON Ports XG/XGS-PON OLT?
The listed specifications include PON Standard: ITU-T G.9807 (XGS-PON), ITU-T G.987 (XG-PON); PON Interface: 8 * SFP+ slots (XG-PON or XGS-PON); PON Speed: XG-PON: Downstream 9.953 Gbps / Upstream 2.488 Gbps | XGS-PON: Downstream 9.953 Gbps / Upstream 9.953 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 8PON Ports XG/XGS-PON OLT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
