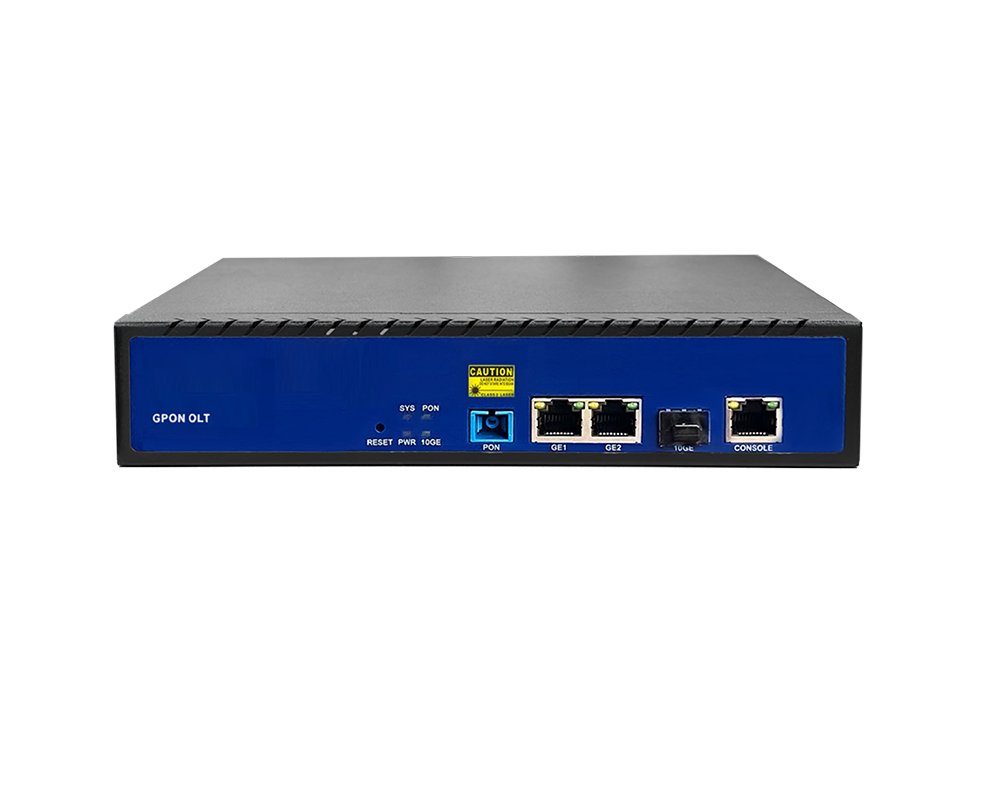

One PON Port GPON OLT
One PON Port GPON OLT is with 2* Gigabit RJ45+10GE SFP uplink ports can connect different core devices to improve bandwidth and reliability. It's small size OLT, easy to install, convenient, flexible and easy to deploy high performance broadband access network.
Category: xPON OLT
Key Features
- 1U single PON port GPON OLT – compact and easy to deploy.
- Class C+ GPON SFP – supports up to 20 km transmission distance with 1:128 split ratio.
- 10GE SFP+ uplink – high-speed uplink for bandwidth-intensive applications.
- Remote software upgrade – via web/TFTP/FTP.
- Low power consumption – ≤20W.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | ITU-T G.984.x (GPON) |
| PON Interface | 1 * GPON SFP (Class C+) |
| PON Speed | Downstream 2.488 Gbps / Upstream 1.244 Gbps |
| Transmission Distance | Up to 20 km |
| Split Ratio | 1:128 (max) |
| Wavelength | TX 1490 nm / RX 1310 nm |
| Uplink Ports | 2 * GE RJ45 + 1 * 10GE SFP+ |
| Backplane Bandwidth | 16 Gbps |
| Forwarding Rate | 23.808 Mpps |
| MAC Address Table | 1K |
| VLAN Support | 4096 VLANs, port VLAN, VLAN tag/untag, VLAN transparent transmission |
| Layer 2 Features | Port isolation, storm control, rate limitation, 802.1D/802.1W |
| Management | Console, WEB, Telnet, CLI |
| Lightning Protection | 4K (power supply) / 1K (interface) |
| Power Consumption | ≤20 W |
| Power Supply | DC 12V/2.5A or AC 85–264V (optional) |
| Operating Temperature | 0°C to +55°C |
| Operating Humidity | 5% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH, SOHO, and small business office deployments.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is One PON Port GPON OLT used for?
Ideal for FTTH, SOHO, and small business office deployments.
Which specifications should I check for One PON Port GPON OLT?
The listed specifications include PON Standard: ITU-T G.984.x (GPON); PON Interface: 1 * GPON SFP (Class C+); PON Speed: Downstream 2.488 Gbps / Upstream 1.244 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for One PON Port GPON OLT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
