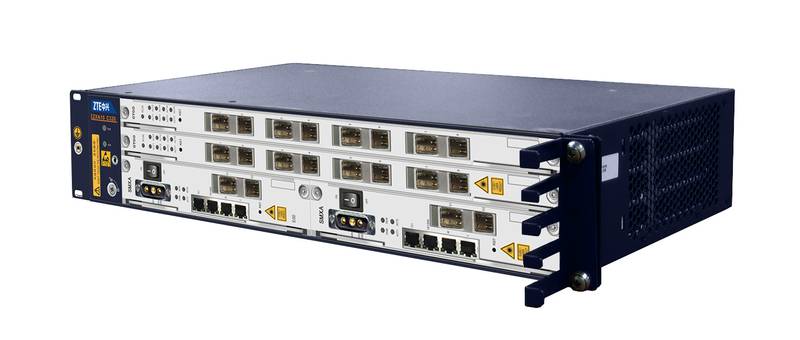

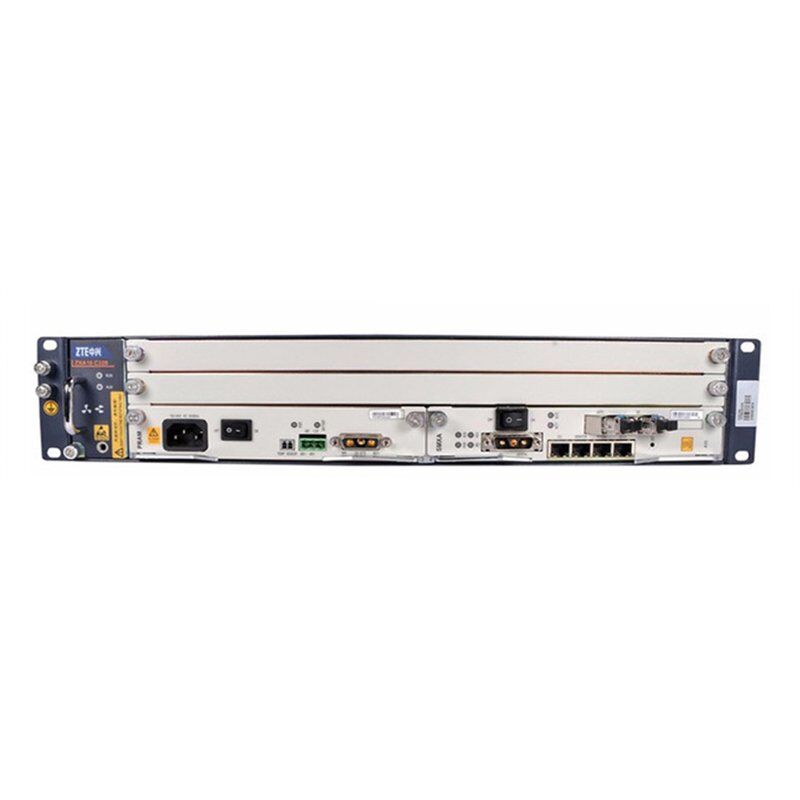

Model: C320
Uplink card: SMXA/1 or SMXA/3
Service card : GTGO 8port GPON card or GTGH 16ports GPON card
ZXA10 C320 is compact FTTx central office access platform oriented to next-generation PON evolution.
It can be configured with GE or 10GE uplink port. There are 2 service card slot, with up to 32 PON ports.
| Model No. | C320 |
| Backplane Exchange capacity | 3.2Tbit/s |
| Control Board
Exchange Capacity |
1920 Gbit/s |
| Access Capacity | 128*10G EPON 64*10G GPON128*EPON256*GPON 768*GE |
| Access Type | Upstream interface: 10GE optical, GE optical/electricity
Business interface: EPON optical port, GPON optical port, 10G EPON optical port, P2P FE optical port, P2P GE optical port, Ethernet optical interface |
| System Performance | Layer 2 / Layer 3 wire-speed forwarding
Support static router /RIP/OSPE.MPLS BITS/E1/STM-1/Ethernet/1588v2/1PPS+ToD clock Maximum support 1:256 splitting ratio Maximum support 60KM logical distance |
| Dimension: | 600x390x250mm |
| Operating Environment | Temperature: -25℃~+55℃
Humidity:5%~95% (non-condensing) |
| Power Supply | -48V DC input
Supports dual power protection Working Voltage range: -38.4V~-72V |
