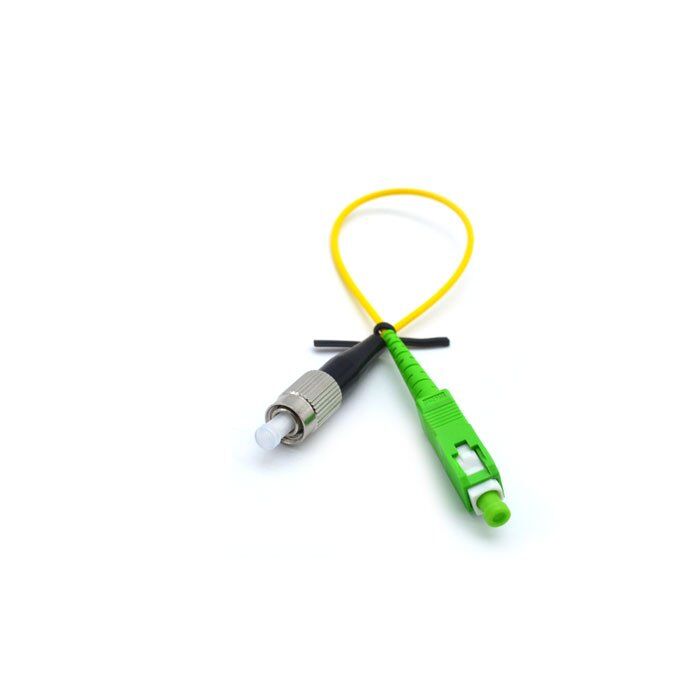

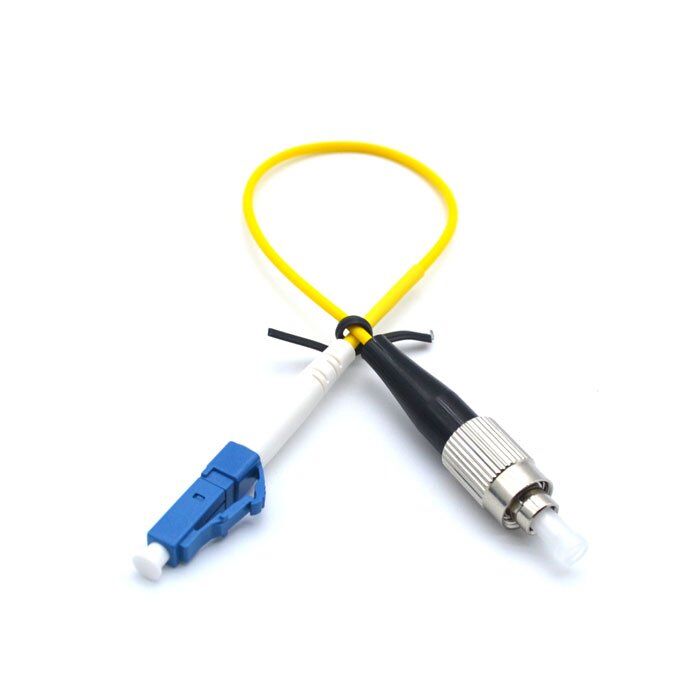

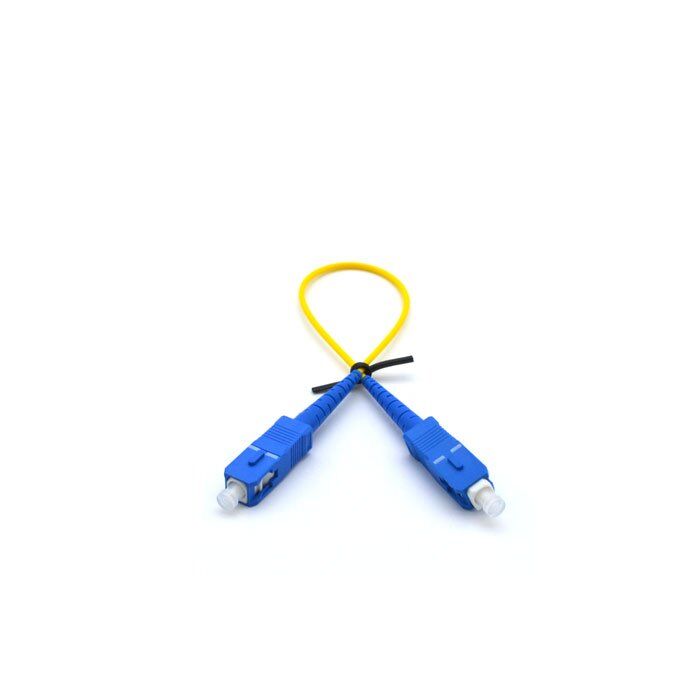

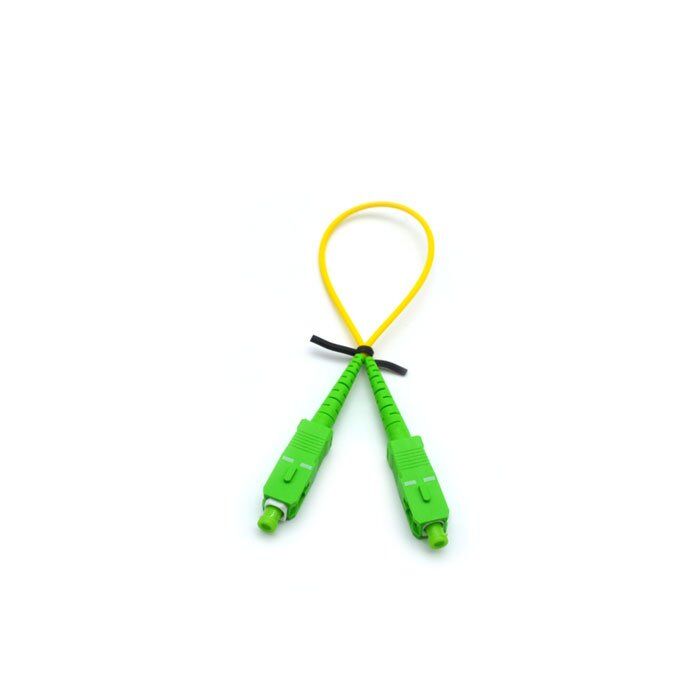

Fiber Optic Patchcord

Name: Fiber Optic Patchcord
Fiber Type: Single-mode or Multimode, Simplex or Duplex
Connector : SC ,LC, FC , ST
End-face: UPC or APC





Mechanical Specifications

Item Specifications
Fiber Type G657、G652
Cable Diameter 3.0mm
Cable Material PVC or LSZH
Fiber type Single-mode or Multimode, Simplex or Duplex
Connector Type SC ,LC, FC , ST
Insert 2.499±0.002mm
Concentricity ≦0.5um

Optical  fiber cable Specifications

Item Unit Index
Out of roundness / ≦10%
Bend radius mm ≥30
Attenuation value dB/km ≦0.36(1310nm)≦0.25(1550nm)
Flame retardancy / Accord to UL94-V0 standard

Optical connector Specifications

Item Unit Index
Operating wavelength nm 1260~1650
Insertion loss dB ≤0.3
Return loss dB            ≥50
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Working temperature -40~+85
