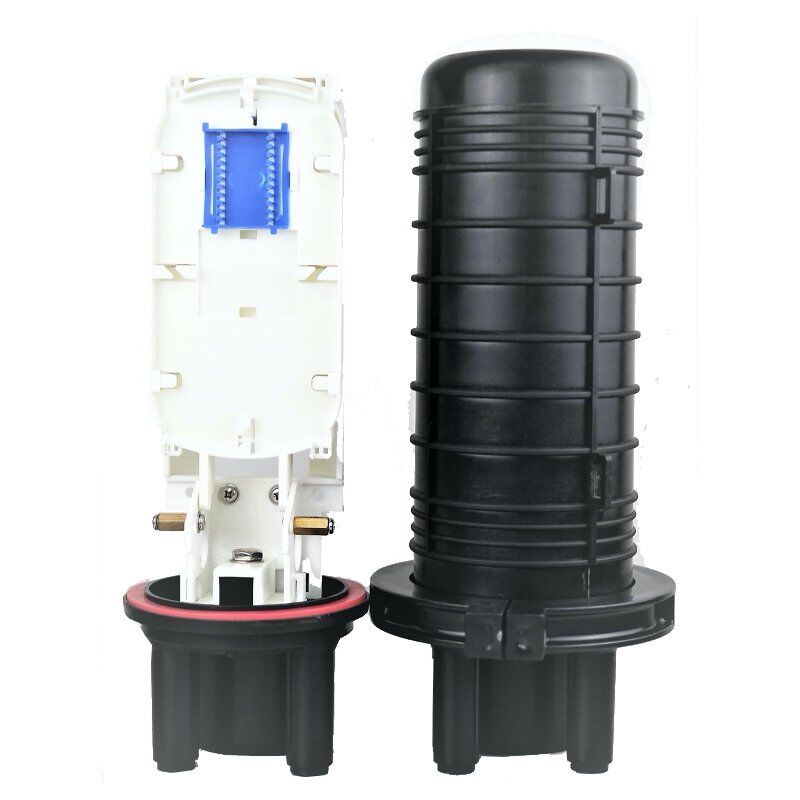

FOSE-20-DR06A-3P Fiber Enclosure

Model: FOSE-20-DR06A-3P
Entry ports: 3 ports
Max cores: 48cores
Dimension (H*D): 320mm *100 mm

Introduction

  1. Protection grade: IP68
  2. Material: PP, ABS
  3. Entry ports: 3port: 1oval(28*58mm) + 2*16mm
  4. Maximum Trays: 2 trays 24C
  5. Maximum adapter: 4SC/4LC
  6. Buffer storge: basket bracket mount
  7. Dimension (H*D): 320mm *100 mm
  8. Environment temp: -30℃~+60℃
  9. Pressure:70kPa~106kPa
  10. Sealing port: Heat shrinking
  11. Quality warrenty:2 years
  12. Life span: more than 25 years
  13. Weight:1.0-1.2Kg
  14. Package(mm): 18pcs/carton, carton size:480*480*720, inner box size:330*150*150
  15. Use stainless nut
  16. Suitable for duct, overhead, bury

Specification

① Environment: Temperature: -30℃- +60℃, Atmospheric Pressure:70-106Kpa

② Life Span: More than 25 years

③ Material: High strength polypropylene(PP)
