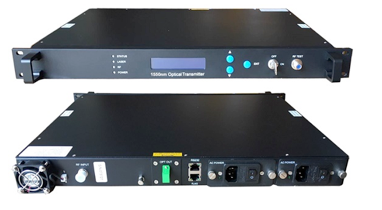

IMOT-1550P 1550nm Optical Transmitter
High-performance IMOT-1550P 1550nm direct modulated optical transmitter available in 2mW to 12mW variants (IMOT-1550P-02 through IMOT-1550P-12). Designed for efficient HFC network signal transmission.
Category: CATV Optical Equipment
Key Features
- Advanced 1550nm DFB laser with internal isolation.
- High performance multi-frequency RF predistortion circuit for optimized CSO & CTB.
- Built-in microprocessor monitors working status of laser.
- Front panel VFD display shows operating parameters.
- RS-232 interface and optional SNMP network management.
- Available variants: IMOT-1550P-02, -04, -06, -08, -10, -12.
Technical Specifications
| Parameter | Specification |
|---|---|
| Wavelength | 1550nm ± 10nm |
| Optical Output Power Variants | 2mW, 4mW, 6mW, 8mW, 10mW, 12mW |
| Fiber Connector | SC/APC (standard) or FC/APC |
| Bandwidth | 47 ~ 862 MHz (or up to 1000 MHz optional) |
| Channels | PAL-D 59/84 channels |
| CNR | ≥ 51 dB |
| CTB | ≤ -65 dB |
| CSO | ≤ -60 dB |
| RF Input Level | 78 ~ 88 dBµV |
| Flatness | ± 0.75 dB |
| RF Input Impedance | 75 Ω |
| Return Loss (RF) | > 16 dB |
| Power Supply | AC 110V~254V, 50/60Hz |
| Power Consumption | ≤ 30 W |
| Dimensions (W x D x H) | 483 mm x 385 mm x 44 mm (19-inch 1U) |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to +85°C |
| Operating Humidity | 5% to 85% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Designed for secondary service areas, local sub-headends, and extensive distribution architectures in traditional HFC broadband networks.
