Product specification

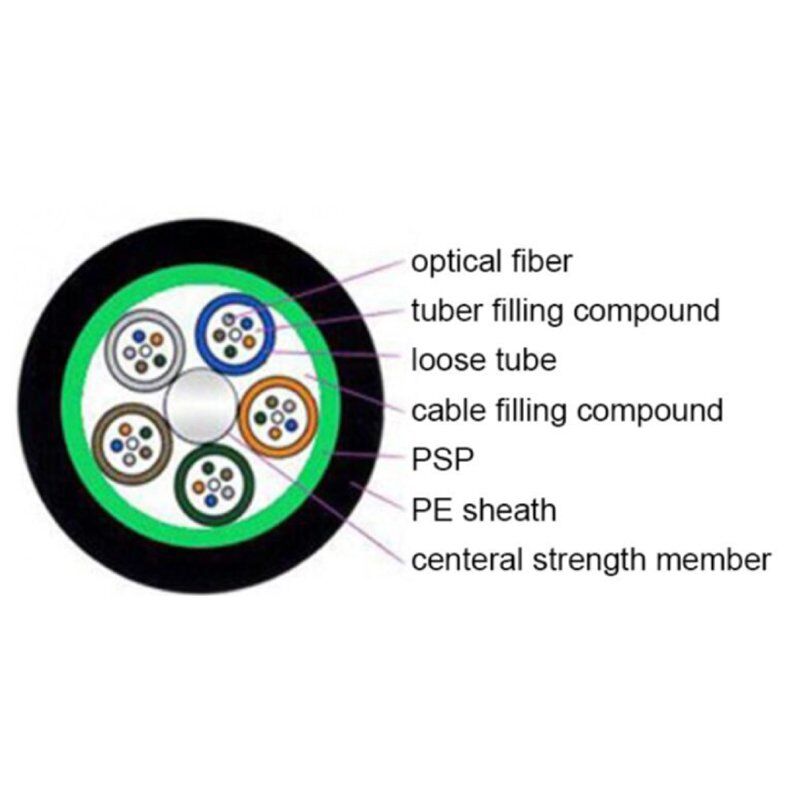

1.Structure specification
| Cable Type | Fiber Count | Tubes | Fillers | Cable diameter
mm |
Cable Weight（kg/km） | Tensile Strength
Long/Short term（N） |
Crush ResistanceLong/Short term（N/100mm） | Bending Radius
Static/Dynamic（mm） |
| GYTA-2~6Xn | 2~6 | 1 | 4 | 9.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-8~12Xn | 8~12 | 2 | 3 | 9.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-14~18Xn | 14~18 | 3 | 2 | 9.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-20~24Xn | 20~24 | 4 | 1 | 9.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-26~30Xn | 26~30 | 5 | 0 | 9.8 | 96 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-32~36Xn | 32~36 | 6 | 0 | 10.4 | 105 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-38~48Xn | 38~48 | 4 | 1 | 10.6 | 111 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-50~60Xn | 50~60 | 5 | 0 | 10.6 | 111 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-62~72Xn | 62~72 | 6 | 0 | 12.1 | 138 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-74~84Xn | 74~84 | 7 | 1 | 13.6 | 168 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-86~96Xn | 86~96 | 8 | 0 | 13.6 | 168 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-98~108Xn | 98~108 | 9 | 1 | 15.4 | 195 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-110~120Xn | 110~120 | 10 | 0 | 15.4 | 195 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-122~132Xn | 122~132 | 11 | 1 | 17.2 | 228 | 600/1500 | 300/1000 | 10D/20D |
| GYTA-134~144Xn | 134~144 | 12 | 0 | 17.2 | 228 | 1000/3000 | 1000/3000 | 10D/20D |
2. Optical characteristics
| Fiber Type | G.652 | G.655 | 50/125μm | 62.5/125μm | |||||
| @850nm | ≤3.0 dB/km | ≤3.0 dB/km | |||||||
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | |||||||
| @1310nm | ≤0.36 dB/km | ≤0.40 dB/km | |||||||
| @1550nm | ≤0.22 dB/km | ≤0.23dB/km | |||||||
| @850nm | ≥500 MHz·km | ≥200 MHz·km | |||||||
| @1300nm | ≥1000 MHz·km | ≥600 MHz·km | |||||||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | |||||||
| Cable Cut-off Wavelength λcc | ≤1260nm | ≤1480nm | |||||||
