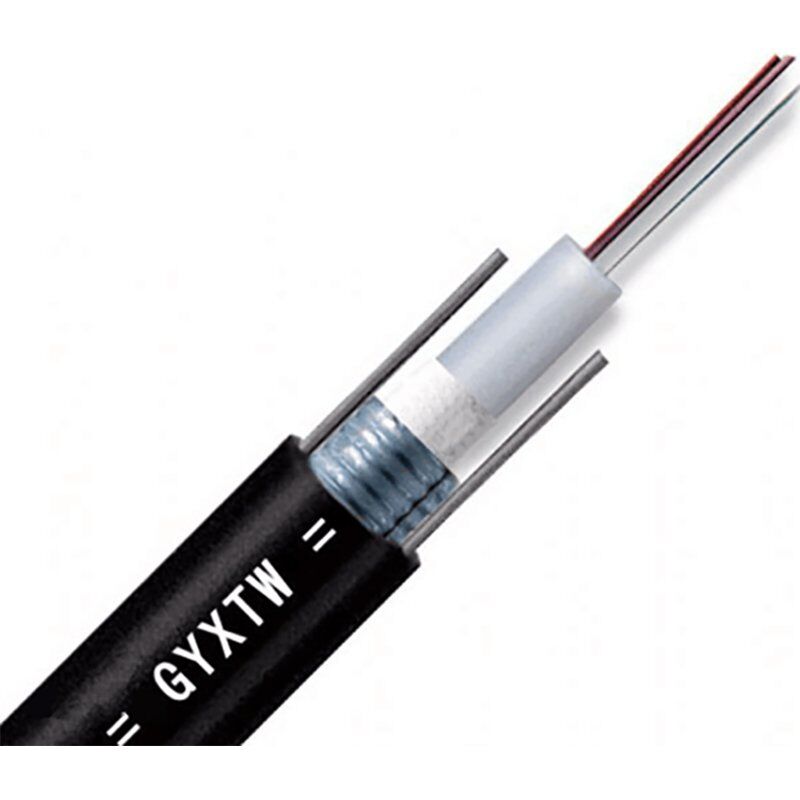

GYXTW outdoor fiber cable

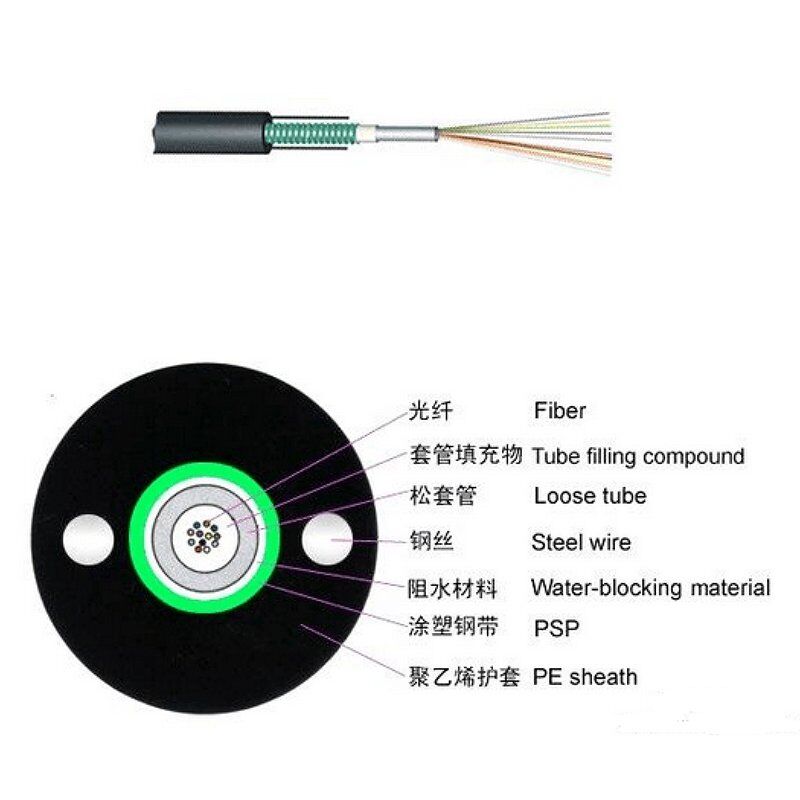

GYXTW outdoor fiber cable structure

GYXTW outdoor fiber cable

Category Fiber Optic Cable Tags GYXTW fiber cable, outdoor fiber cable

Model: GYXTW
Fiber type: G655, G652, or other
Cores: 2~24cores

Product specification

1.Structure specification

Cable Type

Fiber Count

Tubes

Fillers

Cable diameter

mm

Cable Weight（kg/km）

Tensile Strength

Long/Short term（N）

Crush ResistanceLong/Short term（N/100mm）

Bending Radius

Static/Dynamic（mm）

GYXTW-2~12Xn

2~12

/

/

8.9

90

600/1000

300/1000

10D/20D

GYXTW-14~24Xn

14~24

/

/

10.2

110

1000/3000

300/1000

10D/20D

2. Optical characteristics

Fiber Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.3 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth	@1300nm			≥500 MHz·km	≥500 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm
