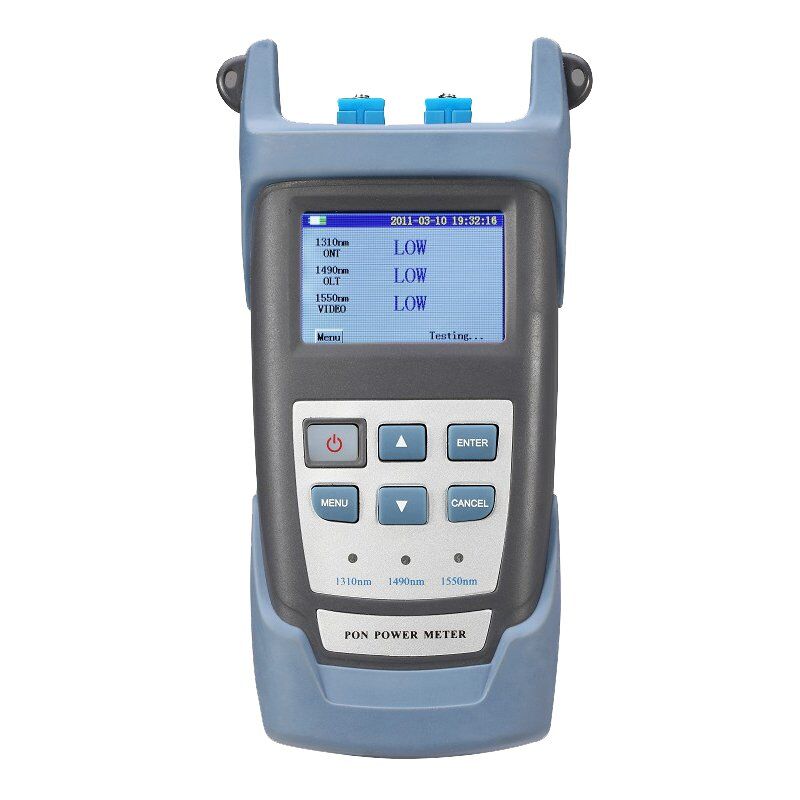

PON Optical Power Meter

Category Fiber Test Equipment Tags OPM, PON Optical Power Meter

Model: POPM-300
Measure wavelengths: 1310/1490/1550nm
Fiber Type: SM

Features

Measure three wavelengths(1310/1490nm/1550nm) simultaneously
Burst mode measurement at 1310nm wavelength
Large LCD screen with backlight function, 10 minutes Auto-off function
Six calibration wavelength available when tested as Normal OPM (850,1300,1310,1490,1550&1625nm)
VFL Function for quick and efficient fault identification
Data upload via USB cable, 1000 storage test records
10 different threshold sets
User self-calibration function in software which used to calibrate the PON module or set the threshold value.

Specifications

Model	POPM-300
Measurement wavelength	1310	1490	1550
Pass Zone(nm)	1260~1360	1470~1505	1535~1570
Measurement Range(dBm)	-40~+10	-40~+10	-40~+20
Isolation1310nm(dB)	–	>40	>40
Isolation 1490nm(dB)	>40	–	>30
Isolation 1550nm(dB)	>40	>40	–
Measurement Accuracy
Connatural uncertainty(dB)	0.5
Connatural uncertainty(dB)	<+0.25
Linearity(dB)	0.1
Passing through insertion Loss(dB)	<1.5
Normal Optical Power Meter Module
Display	128*64
Measurement Unit	dB/dBm/ xW
Resolution (dB)	0.01
Power Supply	Li battery (9V)
Fiber Type	SM
Measurement Range(dBm)	-10~60⁰C
Store Range(dBm)	-25~70⁰C
Size (mm)	210 x 115 x 55
