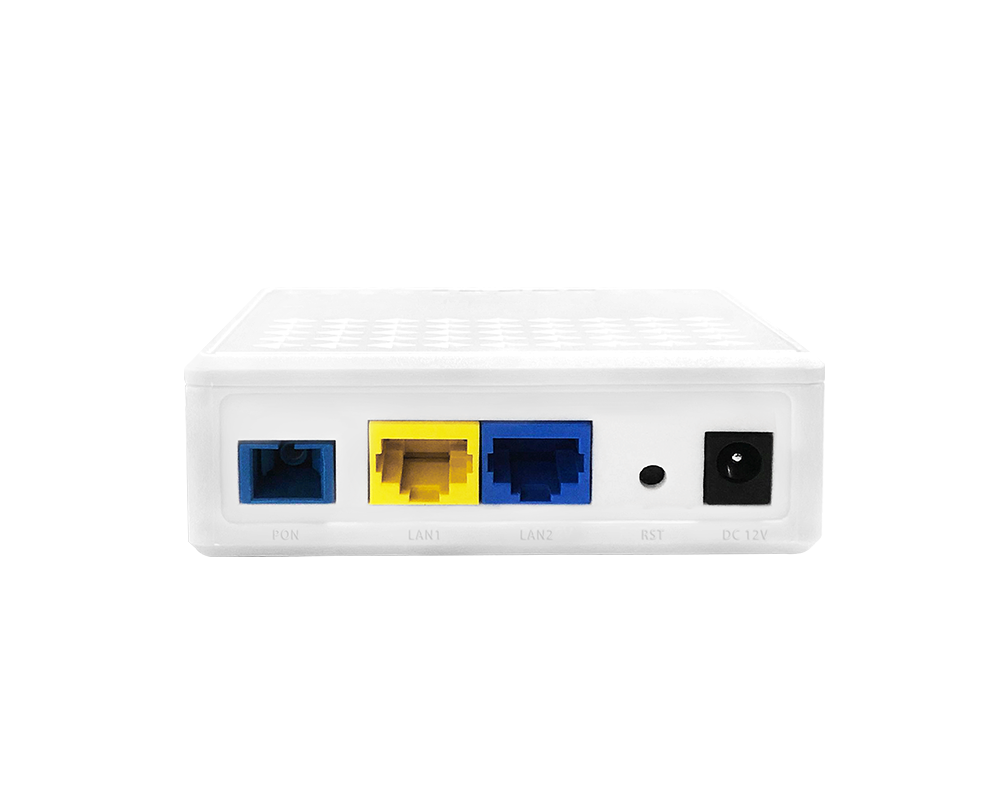

1GE+2.5GE HGU xPON ONU
1GE + 2.5GE XPON ONU with GPON/EPON dual-mode support. Designed for high-bandwidth applications such as WiFi 6 routers, AR/VR, and 8K video streaming. Ideal for FTTH, FTTO, and SOHO broadband access.
Category: xPON ONT/ONU
Key Features
- XPON dual-mode – automatically detects OLT and switches between GPON and EPON.
- 2.5GE port – supports high-bandwidth access for WiFi 6 routers and 8K video.
- Bridging & routing modes – flexible deployment options.
- IPv4/IPv6 dual stack – future-proof network compatibility.
- Rogue ONU detection – enhances network stability and security.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah |
| Optical Interface | 1 * XPON port, SC/UPC, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| Data Ports | 1 * 2.5GE + 1 * GE (10/100/1000 Mbps) RJ45 |
| Management | CTC OAM 2.0/2.1, OMCI, TR069, WEB, Telnet, CLI |
| Multicast | IGMP v1/v2/snooping, max 8 multicast VLANs, max 64 multicast groups |
| VLAN Support | VLAN tag/transparent/trunk (max 8 VLANs), 1:1 translation, auto VLAN detection |
| Layer 3 | IPv4, DHCP/PPPoE/static IP, static routing, NAT |
| QoS | 4 queues, SP, WRR, 802.1P |
| Security | Firewall, DDoS protection, ACL/MAC/URL filtering, rogue ONU detection |
| Power Consumption | ≤10 W |
| Power Supply | DC 12V, 0.5A adapter |
| Dimension (LWH) | 100 mm * 92 mm * 30 mm |
| Operating Temperature | -20°C to +60°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH, FTTO, and SOHO broadband access.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 1GE+2.5GE HGU xPON ONU used for?
Ideal for FTTH, FTTO, and SOHO broadband access.
Which specifications should I check for 1GE+2.5GE HGU xPON ONU?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah; Optical Interface: 1 * XPON port, SC/UPC, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 1GE+2.5GE HGU xPON ONU?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
