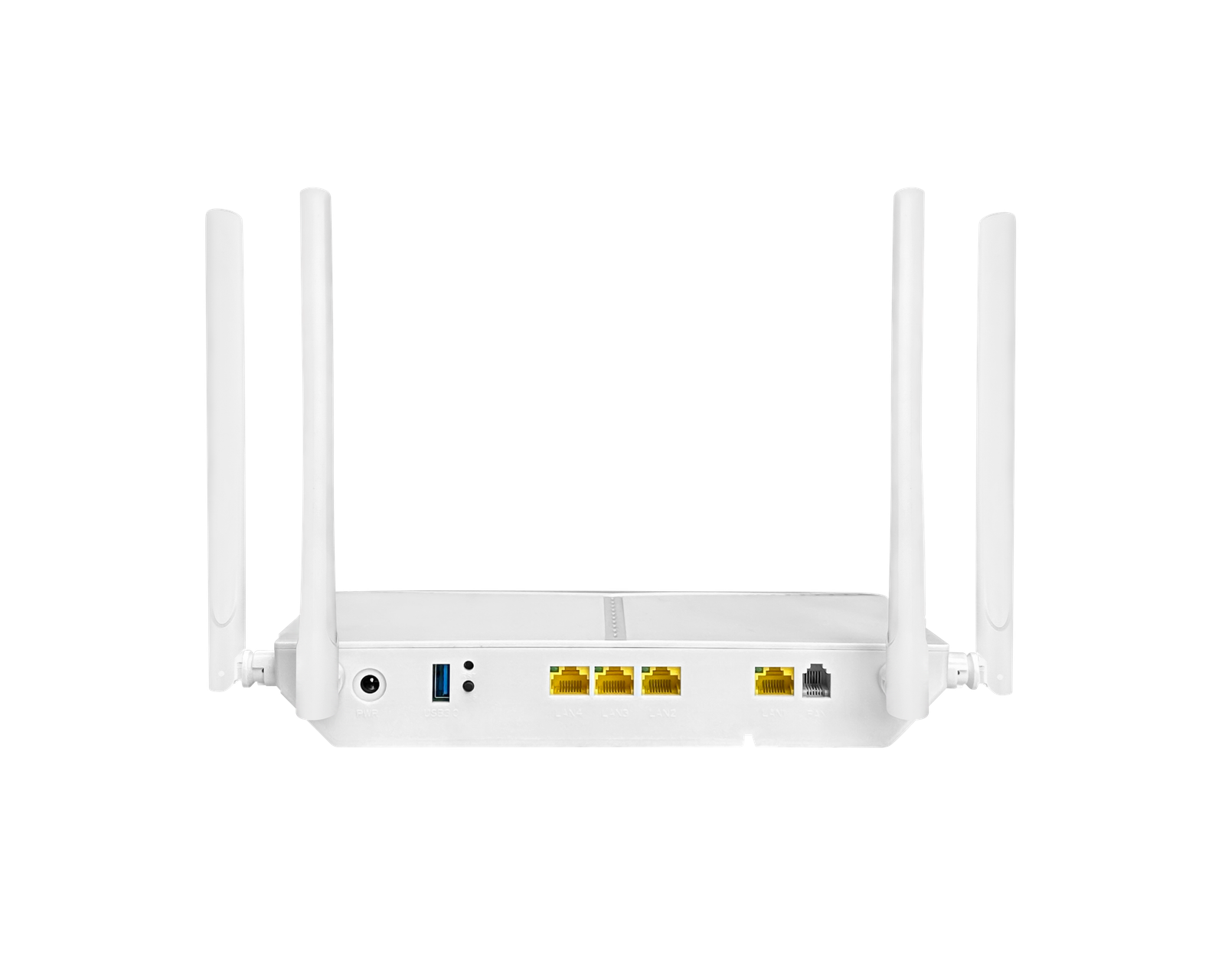

4GE + 1POTS + WiFi6 xPON ONT
4GE + 1POTS + WiFi6 XPON ONT with GPON/EPON dual-mode support. Built-in AX1500/AX1800/AX3000 WiFi 6 technology, USB 3.0 port, and VoIP support. Ideal for carrier-grade FTTH deployments.
Category: xPON ONT/ONU
Key Features
- XPON dual-mode support – seamlessly switches between GPON and EPON networks.
- High-speed WiFi 6 – built-in AX1500/AX1800/AX3000 options with OFDMA and MU-MIMO.
- Versatile connectivity – 4*GE ports, 1*POTS for VoIP, and 1*USB 3.0 interface.
- IPv4/IPv6 dual stack – future-proofs the network for next-generation protocols.
- Comprehensive network security – features Anti-DDoS and advanced filtering.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON (ITU-T G.984.x) / EPON (IEEE 802.3ah) |
| Optical Interface | 1 * XPON port, SC/UPC, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| Data Ports | 4 * GE (10/100/1000 Mbps) RJ45 |
| VoIP Port | 1 * FXS (RJ11), SIP/IMS-SIP protocol |
| VoIP Codec | G.711a/G.711u, G.722, G.729 |
| VoIP Features | Caller ID, Call Waiting, Call Forwarding, Call Transfer, 3-way Conference, T.30/T.38 FAX |
| USB Interface | 1 * USB 3.0 |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax (WiFi 6) |
| WiFi Speed | AX1500 / AX1800 / AX3000 optional |
| WiFi Features | OFDMA, MU-MIMO, 1024-QAM, Smart Connect |
| WiFi Encryption | WEP-64/128, WPA/WPA2/WPA3 |
| Antenna | 4 * 5dBi external antennas |
| Management | WEB, Telnet, OAM, OMCI, TR069 |
| Multicast | IGMP v1/v2/v3 snooping, MLD v1/v2 snooping |
| VLAN Support | 802.1Q VLAN, 802.1ad bridging, 802.1p CoS |
| Layer 3 | IPv4/IPv6, DHCP client/server, PPPoE, NAT, DMZ, DDNS |
| Security | Anti-DDoS, ACL/MAC/URL filtering |
| Power Consumption | ≤18 W |
| Power Supply | DC 12V, 1.5A adapter |
| Dimension | 239 mm * 140 mm * 42 mm |
| Weight | 0.34 kg |
| Operating Temperature | 0°C to +55°C |
| Operating Humidity | 5% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for carrier-grade FTTH deployments requiring high-speed Wi-Fi, multiple wired connections, and voice services.
Related Products
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
- 1GE+2.5GE HGU xPON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 4GE + 1POTS + WiFi6 xPON ONT used for?
Ideal for carrier-grade FTTH deployments requiring high-speed Wi-Fi, multiple wired connections, and voice services.
Which specifications should I check for 4GE + 1POTS + WiFi6 xPON ONT?
The listed specifications include PON Standard: GPON (ITU-T G.984.x) / EPON (IEEE 802.3ah); Optical Interface: 1 * XPON port, SC/UPC, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 4GE + 1POTS + WiFi6 xPON ONT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
