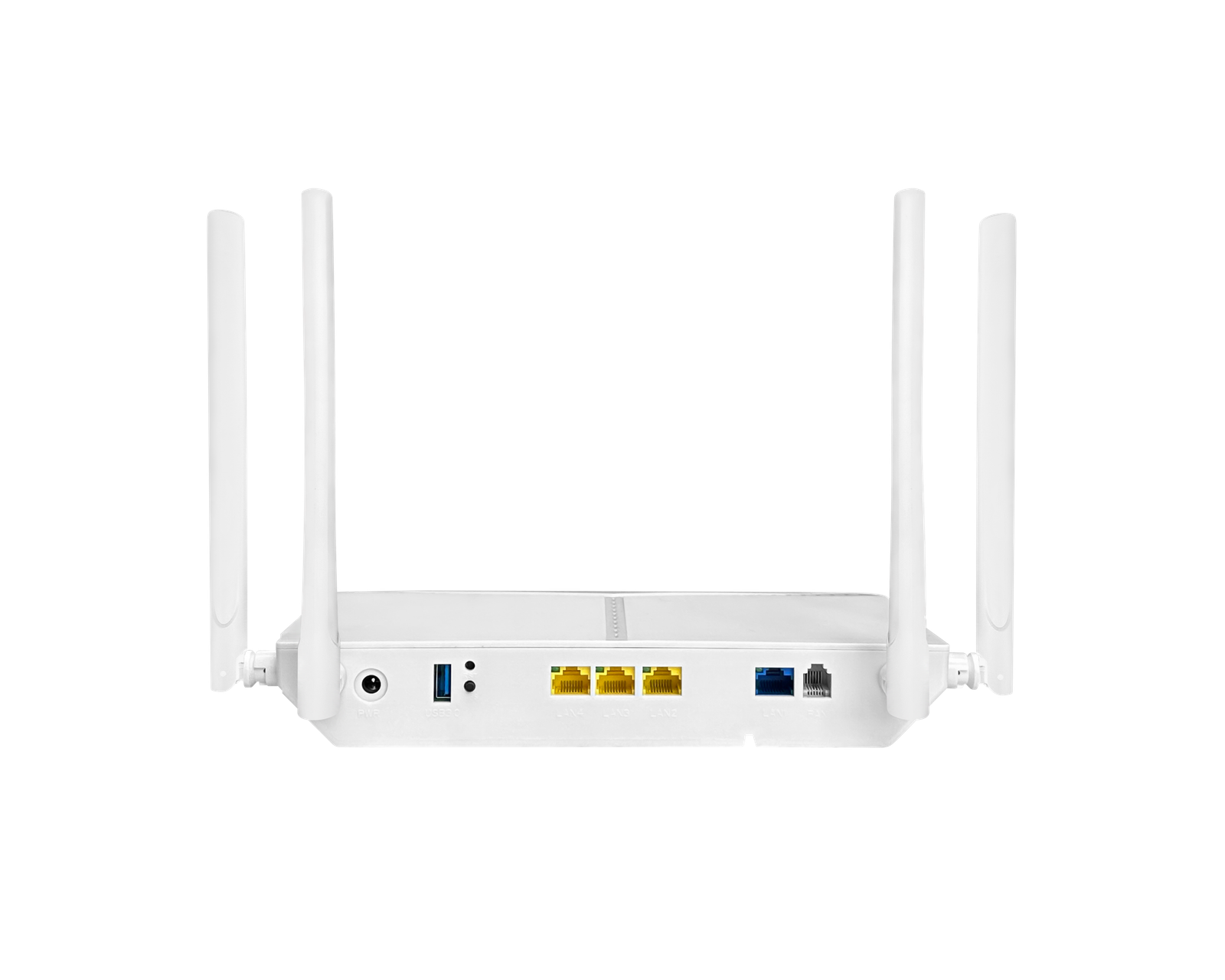

1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
1*2.5GE + 3*GE + 1*POTS + WiFi6 ONU with 10G EPON / XG-PON / XGS-PON support. Built-in AX3000 WiFi 6 technology, delivering ultra-high bandwidth for 8K video, AR/VR, and next-generation broadband access.
Category: xPON ONT/ONU
Key Features
- 10G PON support – compatible with 10G EPON, XG-PON, and XGS-PON standards.
- WiFi 6 (AX3000) – 2.4GHz & 5GHz dual-band, speed up to 3 Gbps, OFDMA, MU-MIMO, 1024-QAM.
- 2.5GE port – high-bandwidth wired connection for WiFi 6 routers or high-speed devices.
- VoIP support – 1 * FXS port with SIP protocol, G.711/G.722/G.729 codec.
- Comprehensive management – WEB, Telnet, OAM, OMCI, TR069.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | 10G EPON: IEEE 802.3av / XG-PON: ITU-T G.987 / XGS-PON: ITU-T G.9807.1 |
| Optical Interface | 1 * 10G PON port, SC/UPC, Class B+ |
| PON Speed | 10G EPON: Symmetric 10 Gbps / XG-PON: Downstream 10 Gbps / Upstream 2.5 Gbps / XGS-PON: Symmetric 10 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | 10G EPON: DS 1577 nm / US 1310 nm / XG(S)-PON: DS 1577 nm / US 1270 nm |
| Data Ports | 1 * 2.5GE + 3 * GE (10/100/1000 Mbps) RJ45 |
| VoIP Port | 1 * FXS (RJ11), SIP/IMS-SIP protocol |
| VoIP Codec | G.711a/G.711u, G.722, G.729 |
| USB Interface | 1 * USB 3.0 (shared storage/printer) |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax (WiFi 6) |
| WiFi Speed | AX3000: 2.4GHz up to 574 Mbps, 5GHz up to 2402 Mbps |
| WiFi Features | OFDMA, MU-MIMO, 1024-QAM, Smart Connect (single SSID) |
| WiFi Encryption | WEP-64/128, WPA/WPA2/WPA3 |
| Antenna | 4 * 5dBi external antennas |
| Management | WEB, Telnet, OAM, OMCI, TR069 |
| Multicast | IGMP v1/v2/v3 snooping, MLD v1/v2 snooping |
| VLAN Support | 802.1Q VLAN, 802.1ad bridging, 802.1p CoS |
| Layer 3 | IPv4/IPv6, DHCP client/server, PPPoE, NAT, DMZ, DDNS |
| Security | Anti-DDoS, ACL/MAC/URL filtering |
| Power Consumption | ≤24 W |
| Power Supply | DC 12V, 2A adapter |
| Dimension | 239 mm * 140 mm * 42 mm |
| Weight | 0.43 kg |
| Operating Temperature | 0°C to +55°C |
| Operating Humidity | 5% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for 8K video streaming, AR/VR applications, and next-generation broadband access for FTTH and enterprise users.
Related Products
Related Solutions & Guides
Equipment Buyer Questions
What is 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU used for?
Ideal for 8K video streaming, AR/VR applications, and next-generation broadband access for FTTH and enterprise users.
Which specifications should I check for 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU?
The listed specifications include PON Standard: 10G EPON: IEEE 802.3av / XG-PON: ITU-T G.987 / XGS-PON: ITU-T G.9807.1; Optical Interface: 1 * 10G PON port, SC/UPC, Class B+; PON Speed: 10G EPON: Symmetric 10 Gbps / XG-PON: Downstream 10 Gbps / Upstream 2.5 Gbps / XGS-PON: Symmetric 10 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
