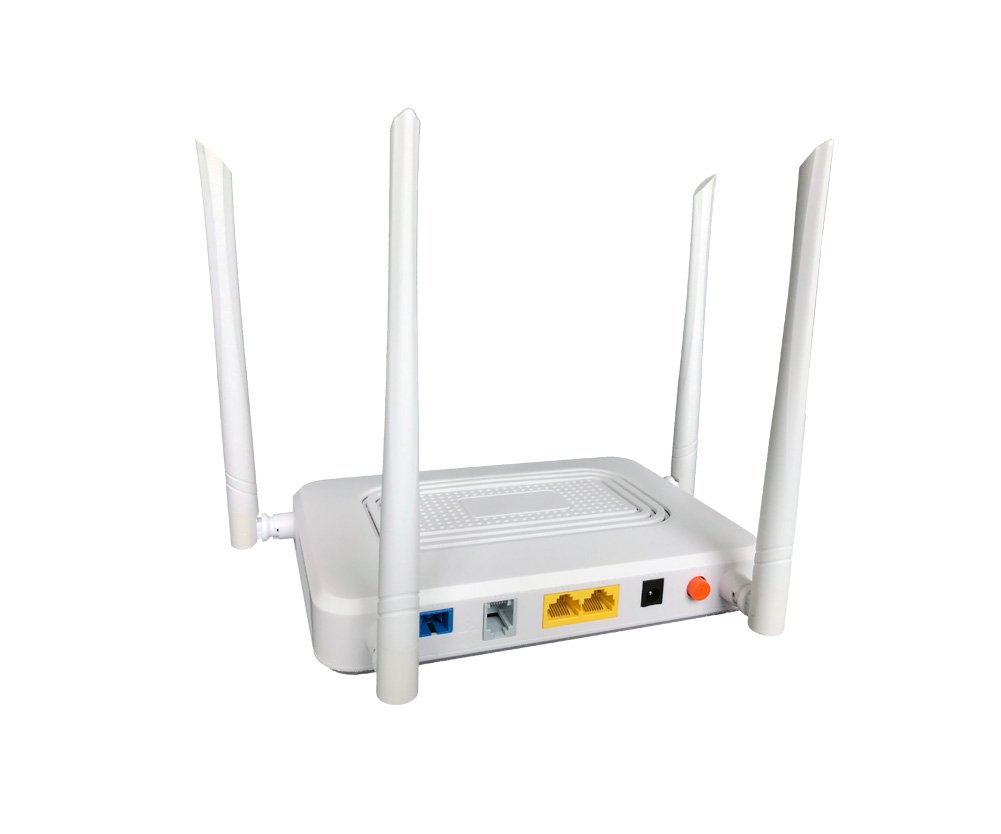

2GE+1POTS+WIFI5 xPON ONT
2GE+1POTS+WIFI5 xPON ONT have high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility, good quality of service (QOS) guarantees, and the technology of 802.11a/b/g/n/ac WIFI(4T4R), Layer 2/3, and high quality VOIP as well.
Category: xPON ONT/ONU
Key Features
- GPON/EPON dual-mode – automatically detects OLT and switches PON mode.
- High-speed WiFi – 4T4R 2.4G/5G WiFi ac, speed up to 1.167Gbps.
- VoIP support – 1 * FXS port with SIP/IMS-SIP protocol, G.711/G.723/G.726/G.729 codec.
- Comprehensive management – supports WEB, Telnet, CLI, OMCI/OAM, TR069.
- Bridging & routing modes – flexible deployment options.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah |
| Optical Interface | SC/PC connector, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| Data Ports | 2 * GE (10/100/1000 Mbps) RJ45 |
| WiFi Standard | IEEE 802.11a/b/g/n/ac (2.4G/5G) |
| WiFi Speed | Up to 1.167 Gbps (4T4R MIMO) |
| Telephone Port | 1 * FXS (RJ11), SIP/IMS-SIP protocol |
| VoIP Codec | G.711, G.723, G.726, G.729 |
| Fax Support | T.30, T.38, G.711 Fax mode, DTMF Relay |
| Management | WEB, Telnet, CLI, OMCI/OAM, TR069 |
| Power Consumption | ≤10 W |
| Power Supply | DC 12V, 1.0A adapter |
| Dimension | 242 mm * 154 mm * 35 mm |
| Weight | 0.28 kg |
| Operating Temperature | -5°C to +55°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for triple-play services (Internet, Voice, and Video/IPTV) over FTTH for residential and small business deployments.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 2GE+1POTS+WIFI5 xPON ONT used for?
Ideal for triple-play services (Internet, Voice, and Video/IPTV) over FTTH for residential and small business deployments.
Which specifications should I check for 2GE+1POTS+WIFI5 xPON ONT?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah; Optical Interface: SC/PC connector, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 2GE+1POTS+WIFI5 xPON ONT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
