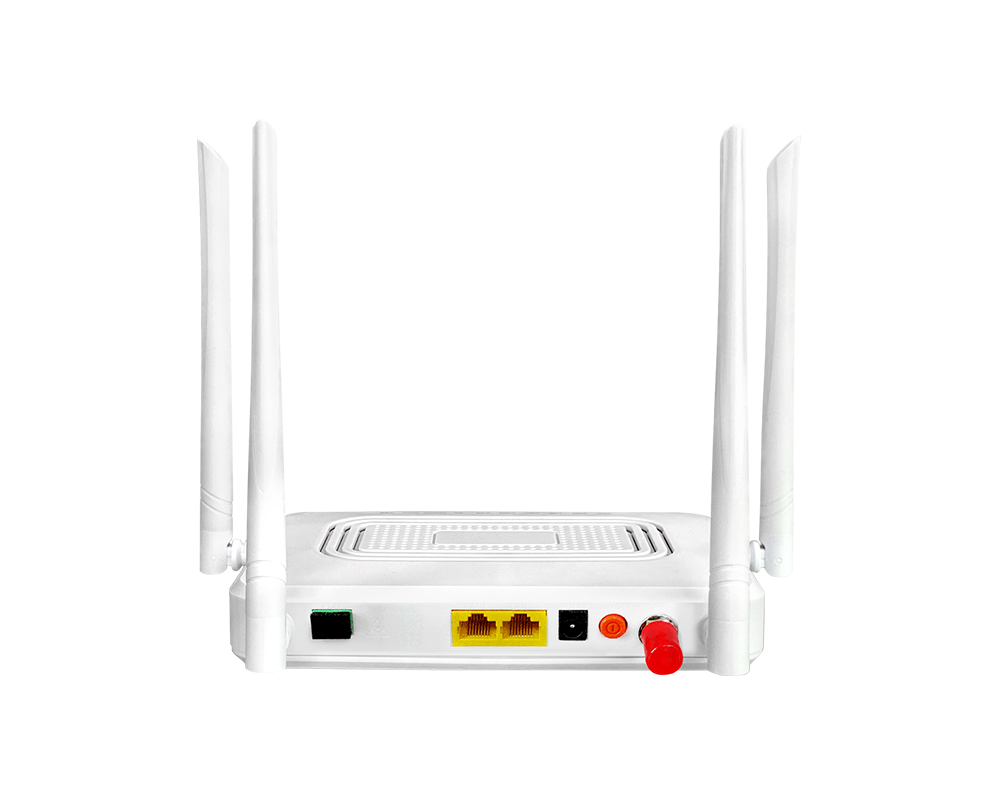

2GE+ CATV+WIFI5 xPON ONT
2GE+ CATV+WIFI5 xPON ONT is with GPON/EPON dual-mode support, built-in 4×4 MIMO WiFi (up to 1.167Gbps), and RF CATV function. The dual mode ONU can automatically detect OLT and switch PON mode, it can be used as GPON or EPON.
Category: xPON ONT/ONU
Key Features
- GPON/EPON dual-mode – auto-detection for seamless integration.
- High-speed WiFi – 802.11ac dual-band up to 1.167Gbps.
- Built-in RF CATV module – supports traditional cable TV services.
- Comprehensive management – via Web/TR069/OAM.
- Low power consumption – energy-efficient design.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | ITU-T G.984.x (GPON) / IEEE 802.3ah (EPON) |
| Optical Interface | 1 * SC/APC |
| PON Speed | GPON: Downstream 2.488 Gbps / Upstream 1.244 Gbps | EPON: Downstream 1.25 Gbps / Upstream 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm / CATV 1550 nm |
| Data Ports | 1 * GE + 1 * FE (RJ45) |
| WiFi Standard | IEEE 802.11 b/g/n/ac (WIFI5) |
| WiFi Speed | 300 Mbps (2.4GHz) + 867 Mbps (5GHz) |
| WiFi Antenna | 4 * 5dBi external antennas |
| USB Interface | 1 * USB 2.0 |
| CATV Bandwidth | 47 MHz ~ 1000 MHz |
| CATV Output Level | ≥ 76 dBuV |
| Management | WEB, TR069, OMCI, OAM |
| Power Consumption | ≤ 8 W |
| Power Supply | DC 12V/1A |
| Dimension | 205 mm * 140 mm * 35 mm |
| Weight | 0.35 kg |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH/FTTO residential and small business applications requiring high-speed broadband, WiFi, and traditional cable TV services.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 2GE+ CATV+WIFI5 xPON ONT used for?
Ideal for FTTH/FTTO residential and small business applications requiring high-speed broadband, WiFi, and traditional cable TV services.
Which specifications should I check for 2GE+ CATV+WIFI5 xPON ONT?
The listed specifications include PON Standard: ITU-T G.984.x (GPON) / IEEE 802.3ah (EPON); Optical Interface: 1 * SC/APC; PON Speed: GPON: Downstream 2.488 Gbps / Upstream 1.244 Gbps | EPON: Downstream 1.25 Gbps / Upstream 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 2GE+ CATV+WIFI5 xPON ONT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
