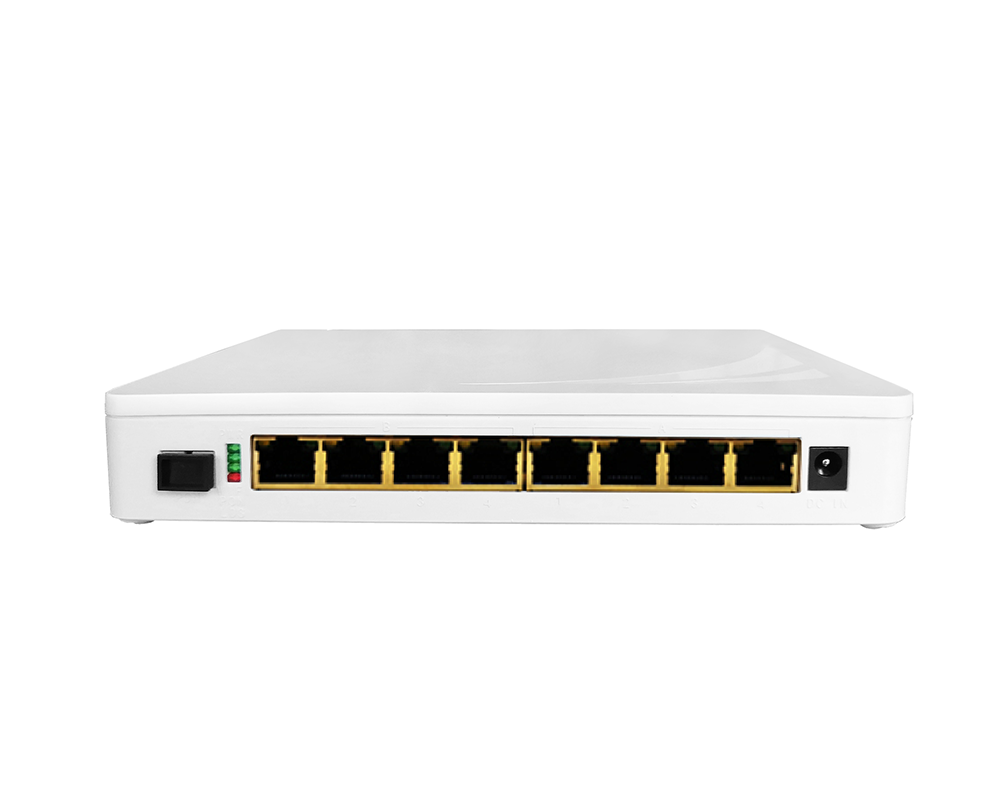

8GE POE xPON ONU
4 or 8 Gigabit PoE ports XPON ONU with dual-band WiFi ac, supporting IEEE 802.3at PoE+ PSE. Ideal for campus networks, hotels, and large public venues.
Category: xPON ONT/ONU
Key Features
- XPON dual-mode – compatible with mainstream OLT (Huawei, ZTE, Fiberhome, etc.)
- PoE+ PSE – supports IEEE 802.3at standard, powers IP cameras, APs, and VoIP phones
- Dual-band WiFi ac – 2.4G/5G with multiple SSID and single SSID roaming
- Flexible port options – 8GE or 4GE models available
- IPv4/IPv6 dual stack – supports static routing, NAT, DMZ, virtual server
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah |
| Optical Interface | SC/PC connector, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON: Downstream 2.488 Gbps / Upstream 1.244 Gbps / EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| Data Ports | 8GE or 4GE (10/100/1000 Mbps) RJ45 with PoE+ |
| PoE Standard | IEEE 802.3at (PoE+ PSE) |
| WiFi Standard | IEEE 802.11b/g/n/ac (WiFi 5) |
| WiFi Frequency | 2.4 GHz (2.400–2.483 GHz) / 5.0 GHz (5.150–5.825 GHz) |
| WiFi Features | Multiple SSID, single SSID roaming, up to 128 users |
| VLAN Support | VLAN tag, transparent, relay, translation modes |
| Multicast | IGMP v1/v2/v3, IGMP Proxy, IGMP Snooping, MLD Proxy, MLD Snooping |
| QoS | 4 queues, SP, WRR, IEEE 802.1P, DSCP |
| Layer 3 | IPv4/IPv6 dual stack, static routing, NAT, DMZ, DNS, ALG, UPnP, virtual server |
| DHCP | DHCP Server, DHCP Relay |
| Security | MAC/ACL/URL filter |
| Management | OMCI, CTC OAM 2.0/2.1, TR069, WEB, Telnet, CLI |
| VPN | L2TP, IPSec VPN |
| Advanced Features | EoIP, VxLan, Web Push |
| Power Supply | AC 220V, 50Hz |
| Dimension (LMH) | 196 mm * 160 mm * 32 mm |
| Operating Temperature | -30°C to +60°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for campus networks, hotels, and large public venues.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is 8GE POE xPON ONU used for?
Ideal for campus networks, hotels, and large public venues.
Which specifications should I check for 8GE POE xPON ONU?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah; Optical Interface: SC/PC connector, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON: Downstream 2.488 Gbps / Upstream 1.244 Gbps / EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for 8GE POE xPON ONU?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
