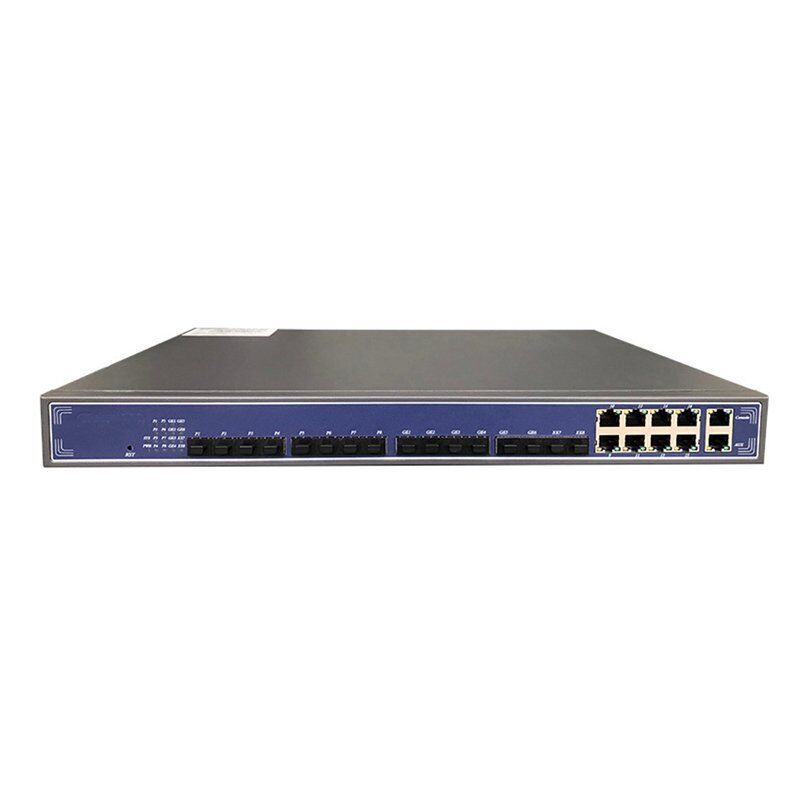

8ports GPON OLT

Model:1600G8
Uplink: 8*GE RJ45 ports+(6*GE SFP+2*10GE SFP+) slot
Downlink: 8*GE GPON ports
Tx power: +3~+7dBm
Rx Sensitivity: -30dBm
Max split ratio: 1:128

Features

  • Support Layer 3 Route/Switch
  • Max split ratio 1:128
  • ONU auto-detection and registration
  • Support LGMP and Snooping function
  • Support data encryption, multi-cast, port VLAN, separation, RSTP, etc
  • Support 2*10GE SFP+ uplink
  • Dual AC power optional



Specifications



Item Parameters
Model 1600G8
Uplink ports 8*GE RJ45 ports+(6*GE SFP+2*10GE SFP+) slot
GPON ports 8*GE GPON Slot

Up/downstream: 1.244/2.488Gbps

Wavelength: TX 1490nm, RX 1310nm

Tx power: +3~+7dBm

Rx Sensitivity: -30dBm

Saturation Optical Power: -12dBm

Management ports 1 10/100BASE-T out-band port, 1 CONSOLE port
Management mode SNMP, Telnet and CLI, WEB
Power Supply AC 100-240V, 47/63Hz
Dimension (L*W*H) 44.2*32*4.4 (cm)
Power Consumption 50W
Weight 4.8kg
Layer 2 aggregation switching 16K Mac address;

Port VLAN and protocol VLAN;

VLAN tag/Un-tag, VLAN transparent transmission;

4096 VLANs;

Vlan translation and QinQ;

Storm control based on port

Port isolation;

Port rate limitation;

802.1D and 802.1W;

Static LACP;

QOS based on port, VID, TOS and MAC address;

Access control list;

IEEE802.x flow control;

Port stability statistic and monitoring;

Layer 3 Route RIP v1/v2;

OSFP v2;

Arp proxy;

Static route.

Multicast IGMP snooping

256 IP Multicast Groups;

DHCP DHCP server

DHCP relay

DHCP snooping

Management Online upgrade of device software

Port Status monitoring and configuration management;

GPON management function: DBA, ONU authorization, ACL, QOS, etc;

Online ONU configuration and management;

User management;

Alarm management.

GPON function Tcont dba;

Gemport traffic

ONU automatic identification, automatic finding, and automatic registration

Data encryption, multi-cast, port VLAN, separation, RSTP, etc;

Power-off alarm function, easy for link problem detection;

Broadcasting storm resistance function;

Port isolation between different ports;

ACL and SNMP to configure data packet filter flexibly;

Flexible DBA, uplink and downlink traffic rate-limited

Operation Temp. 0~ +50°C
Storage Temp. -40 ~ +85°C
Humidity 5~90% (non-condensing)
