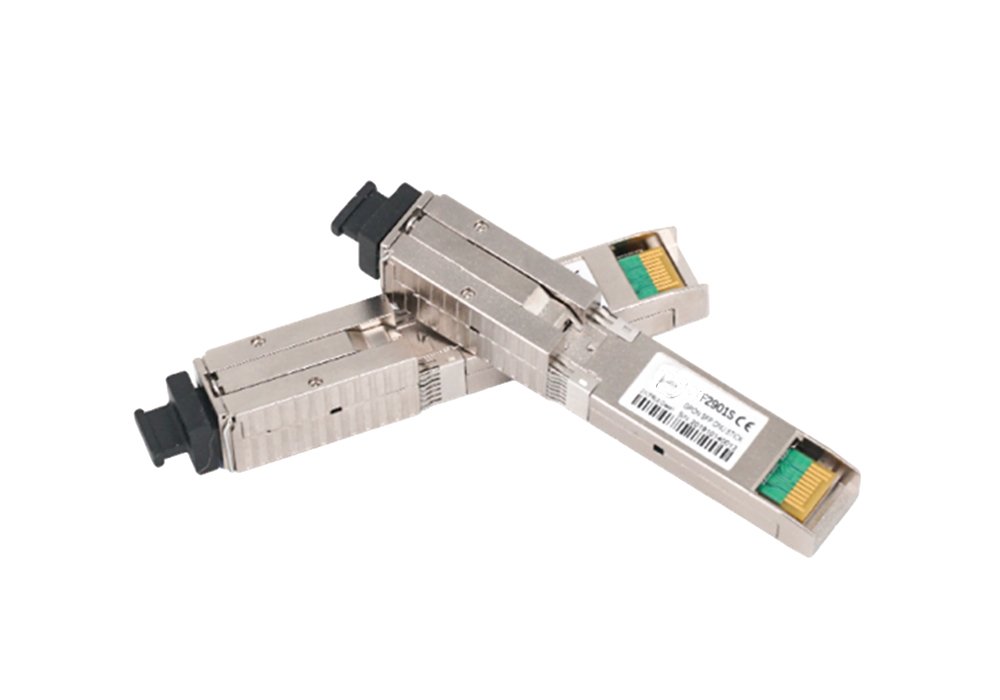

xPON Stick SFP ONT
xPON Stick SFP ONT with 1*GE interface, GPON/EPON dual-mode auto-adaptive. Plug-and-play SFP form factor for easy deployment in FTTH and enterprise applications.
Category: xPON ONT/ONU
Key Features
- XPON dual-mode – auto-adaptive GPON/EPON, compatible with mainstream OLT.
- SFP form factor – plug-and-play with built-in MAC, no external power needed.
- Bridging mode – supports PPPoE packet forwarding.
- Low power consumption – ≤4W.
Technical Specifications
| Parameter | Specification |
|---|---|
| PON Standard | GPON: ITU-T G.984.x / EPON: IEEE 802.3ah, CTC 3.0 |
| Optical Interface | 1 * SC/UPC connector, Class B+ (GPON) / PX20+ (EPON) |
| PON Speed | GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps |
| Transmission Distance | Up to 20 km |
| Wavelength | TX 1310 nm / RX 1490 nm |
| LAN Interface | 1 * GE (SFP connector) |
| Operating Mode | SFU bridging mode |
| Multicast | IGMP v2/v3 |
| Layer 2 | 802.1D & 802.1ad bridging, 802.1p CoS |
| Power Consumption | ≤4 W |
| Power Supply | DC 3.3V |
| Dimension | 14.1 mm * 79 mm * 13.6 mm |
| Weight | 35 g |
| Operating Temperature | 0°C to +50°C |
| Operating Humidity | 10% to 90% (non-condensing) |
Specifications and variant information reflect the published catalog. Confirm the exact model, optional features and compatibility with FOT before ordering.
Typical Applications
Ideal for FTTH deployment and enterprise applications where space is limited and plug-and-play SFP functionality is required.
Related Products
- 4GE + 1POTS + WiFi6 xPON ONT
- 10GE+4GE XGS-PON ONU
- 10GE+1GE XG(S)-PON ONU
- 1*2.5GE + 3*GE + 1*POTS + WiFi6 XG(S)-PON ONU
Related Solutions & Guides
Equipment Buyer Questions
What is xPON Stick SFP ONT used for?
Ideal for FTTH deployment and enterprise applications where space is limited and plug-and-play SFP functionality is required.
Which specifications should I check for xPON Stick SFP ONT?
The listed specifications include PON Standard: GPON: ITU-T G.984.x / EPON: IEEE 802.3ah, CTC 3.0; Optical Interface: 1 * SC/UPC connector, Class B+ (GPON) / PX20+ (EPON); PON Speed: GPON: Downstream 2.5 Gbps / Upstream 1.25 Gbps / EPON: Symmetric 1.25 Gbps; Transmission Distance: Up to 20 km. Review the complete table and confirm your required configuration with FOT.
Is compatibility with my existing network guaranteed?
Compatibility depends on your existing equipment, firmware, interfaces and service configuration. Share your OLT/ONT or network equipment models with FOT for confirmation before deployment.
How can I request a quote for xPON Stick SFP ONT?
Email sales@fiberoptictel.com with the product name, quantity and required configuration. Ask for confirmation of pricing, availability and lead time.
