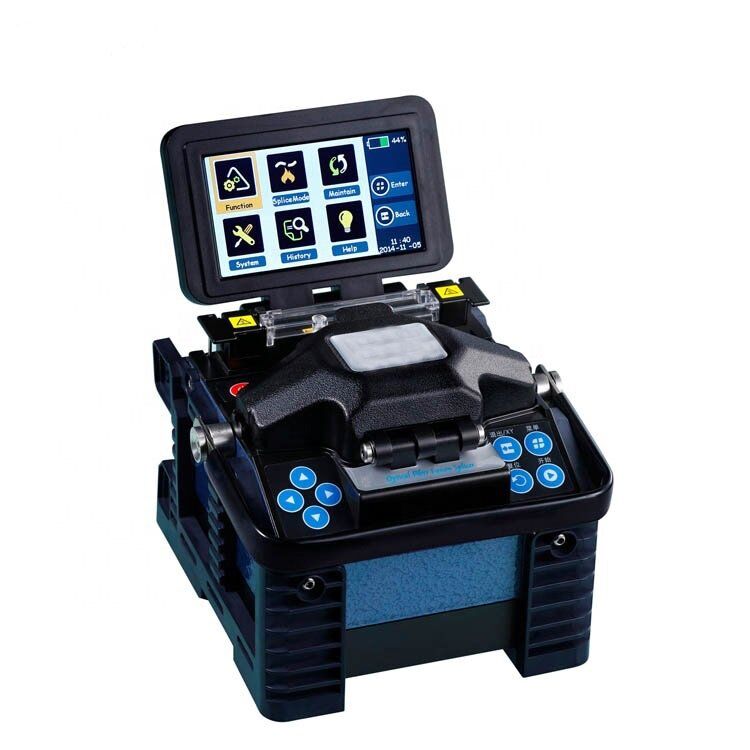

FS-88 Fusion Splicer

Model: FS-88
3 inches 16:9 TFT colorized LCD screen
Splicing time: 9sec(typical parameter) /7 the sec (fast mode)


  • Based on the principle of PAS (Lateral Projection System), adopt advanced image detection algorithm
  • Typical fusion time: 7sec, typical heating time: 7-17sec
  • 3 inches 16:9 TFT colorized LCD screen


Item Parameters
Model FS-88
Applicable fibers SM(Single mode), MM(Multi-mode), DS(Dispersion shift), NZDS(Non zero dispersion shift)
Alignment Cladding alignment, Fine Alignment
Applicable Optical Fiber Diameter Cladding Diameter: 90~150μm,

Coating diameter:200~1000μm

Applicable Optical Fiber Cable Diameter 2mm, 3mm, 4mm, 6mm
Applicable Sleeve Length 60mm, 45mm, 40mm (FP-03)
Average splice loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS),0.04db(BIF/UBIF)
Ruturn loss Better than 60dB
Splicing time 9sec(typical parameter) /7 the sec (fast mode)
Heating time Fusion-Protection Sleeves 14s Fast heating (customizable)
Heating temperature Below 240°C(customizable)
Automatic Heating Automatic fiber identification & Heating when close cover
Tension test 2N(option)
Monitor 4.3 inches colorized LCD, Support in both Chinese and English, Spanish, Russian, French, Portuguese and other display
Optical Fiber Magnification Times X/Y:180 times, X or Y:350 times
Data Interface USB 2.0
Splice results storage 10000 groups of the latest records
Operating condition 0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Power supply 13.5V/5A power adapter
Battery Typically work 200 cycles (Splicing / Heating),

Full charge 3Hours, Recharge Cycle: 500 times,

10.8V, 5200mA Li-battery

Dimension L166*W140*H130mm
Weight 1.89kg (with battery)
