optical light source series

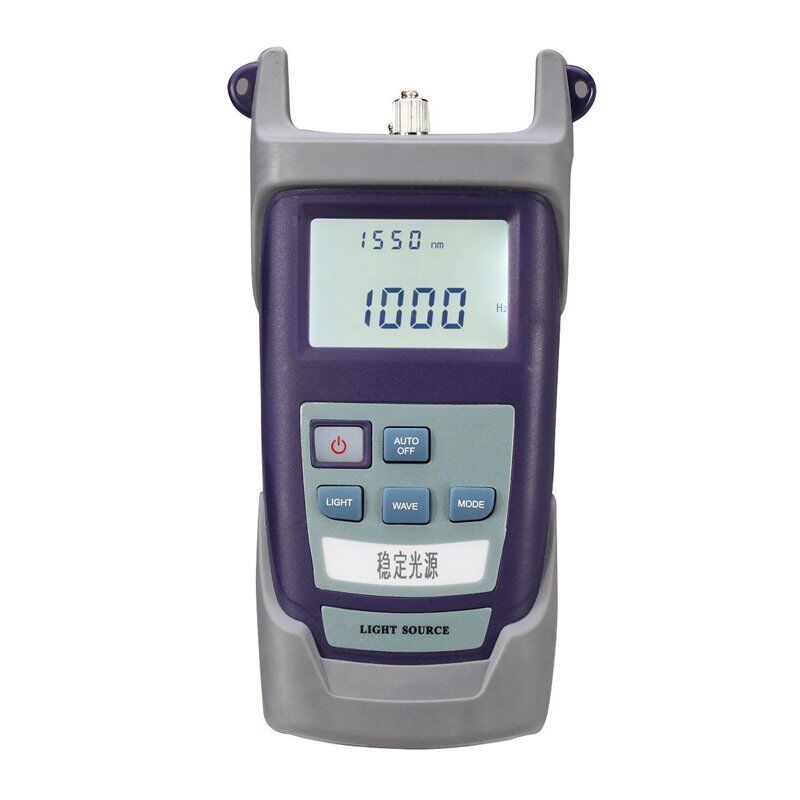

FOT optical Light Sorce

Category Fiber Test Equipment Tags OLS, optical light source

Model: OLS300A/B/C/D/E
Wavelengths(nm): 1310/1550, 1310/1490/1550, 1310/1490, 850/1310/1550, 1300/1310/1550, 850/1300/1310/1550

Features

1~4 output wavelengths which can be optional according to needs
Backlight LCD display supports night operation
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
Modulation output at other wavelengths
High stability output power
Stable output wavelength

Specifications

Model	OLS300A	OLS300B	OLS300BB	OLS300C	OLS300D	OLS300E
Wavelengths(nm)	1310/1550nm	1310/1490/	1310/1490/	850/1310/	1300/1310/	850/1300/
		1550nm	1550nm	1550nm	1550nm	1310/1550nm
Emitter Type	FP-LD,LED or others please specify
Output Power(dBm)	-6~-7(1310/1550nm),>0 (650nm)
Output Stability	+0.05dB/15mins; +0.1dB/ 8hours
Modulation Frequencies	CW / 2(650nm) / 270, 1K,2K (1310nm/1550nm)
Optical Connector	FC/PC
	( Interchangeable FC/SC/ST connectors can be optional)
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)	45
Operating Temperature(oC)	-10 ~ +60
Storage Temperature(oC)	-25 ~ +70
Dimension(mm)	1728233
Weight	295g
