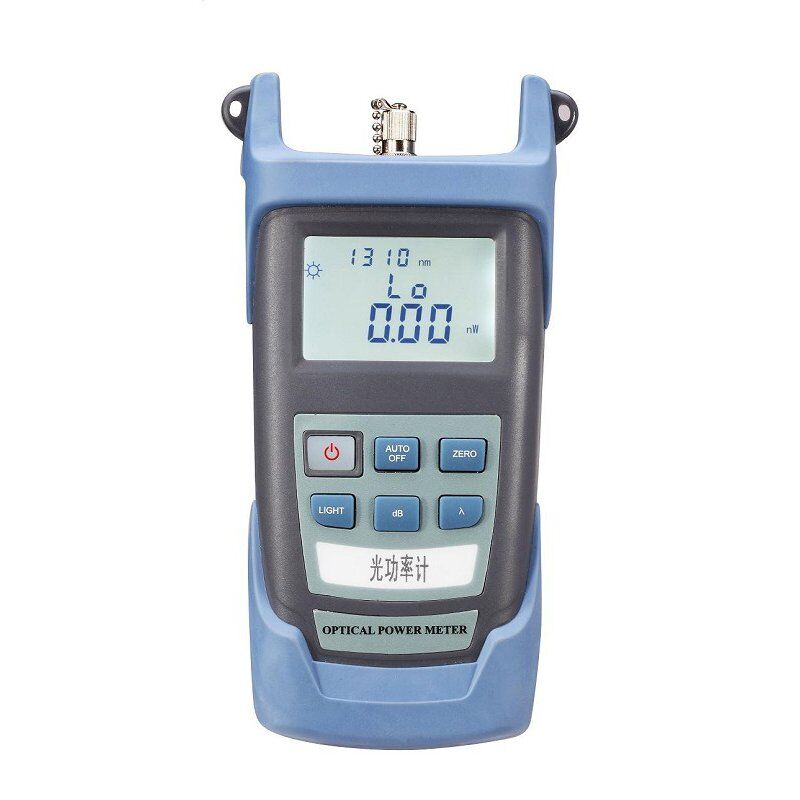

Optical Power Meter

Optical Power Meter

Category Fiber Test Equipment Tags OPM, Optical power meter

Model: OPM-300A/B
Measurement Range(dBm): -70+10, -50+26
Wavelength (nm): 850,980,1300,1310,1490,1550,1625

Features

Wave ID Auto wavelength identification & switching
Frequency ID —Auto frequency identification
2 types of backlight modes, manual or outside light intensity, which indicated by LED light red or blue color.
Intelligent backlight
USB communication port for saved testing records download
Reference power level can be set up and stored
User self-calibrating function
Auto-off function
Up to 240hrs battery life

Specifications

Model	OPM300A	OPM300B
Calibration Wavelength(nm)	800~1700
Detector type	InGaAs
Detector Size(mm)	0.3
Measurement Range(dBm)	-70+10	-50+26
Uncertainty (dB)	+0.2(5%)
linearity (dB)	0.01
Display resolution(dB)	0.03
Frequency ID (Hz)	270 330 1K 2K
Wave ID (nm)	850,980,1300,1310,1490,1550,1625
Resolution(dB)	Linear 0.1% or Non-linear 0.01dBm
Communication Port	RS232
Connector	FC/PC ( Interchangeable FC/SC/ST connectors can be optional)
Alkaline battery	3AAA 1.5V or Li battery (9V) optional
Power Adapter(V)	8.4
Battery Operating time (h)	240 without backlight
Operation Temperature(^oC)	-10(^oC) +60
Storage Temperature(^oC)	-25(^oC)+70
Dimension(mm)	1728233
Weight(g)	310
